System Circuit Diagram

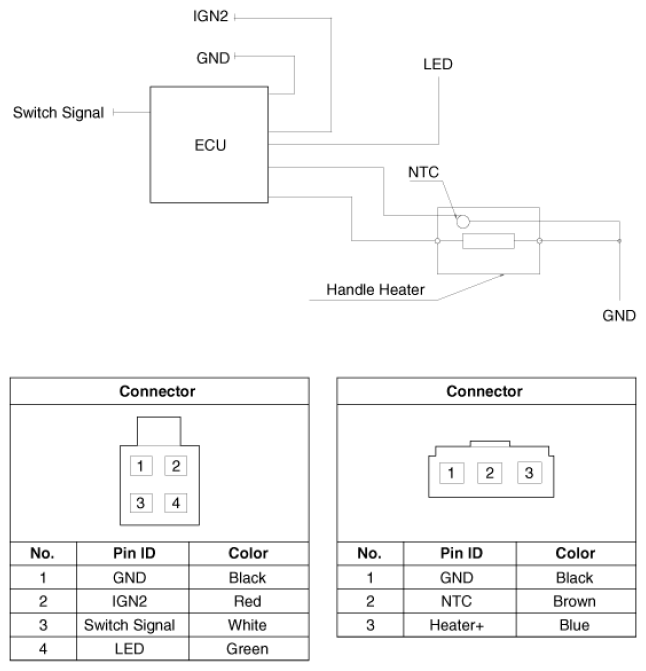

Fig 1: Steering System Circuit Diagram

G09777928

Courtesy of KIA MOTORS AMERICA, INC.
