Monitor GDS Data

  1. Connect GDS to DLC (Data Link Cable).
  2. Warm up the engine to normal operating temperature.
  3. Monitor Injector related parameter on the "Current Data"  with GDS.

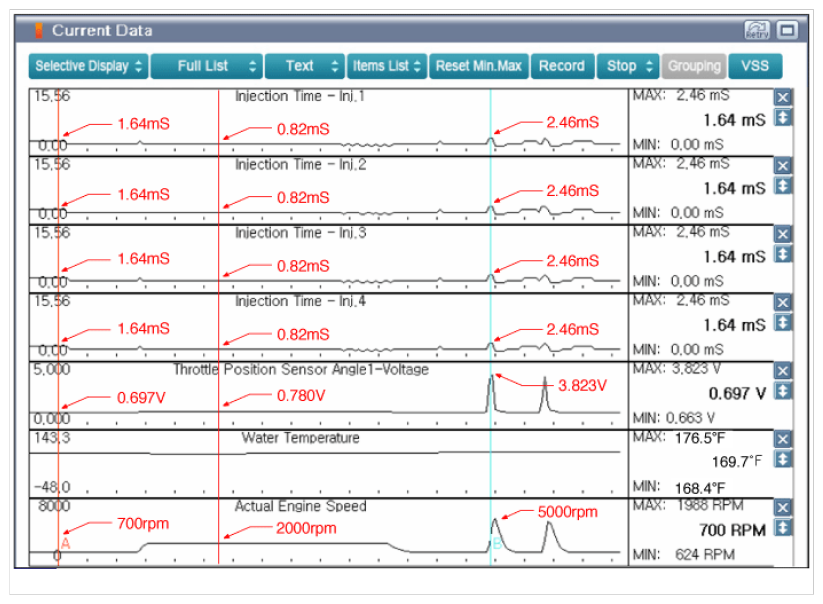

    Fig 1: Injector Waveforms - Engine Idle After Warm Up, 2000 RPM & Acceleration
    G09776622Courtesy of KIA MOTORS AMERICA, INC.
  4. Is the "Injector" parameter displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
