Circuit Diagram

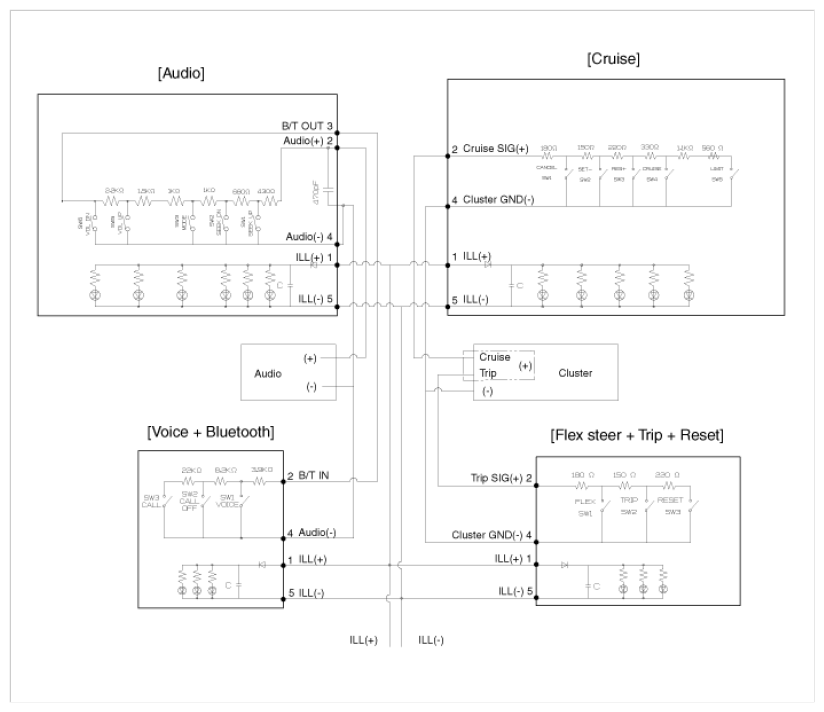

Fig 1: Audio - Circuit Diagram
G09782308Courtesy of KIA MOTORS AMERICA, INC.

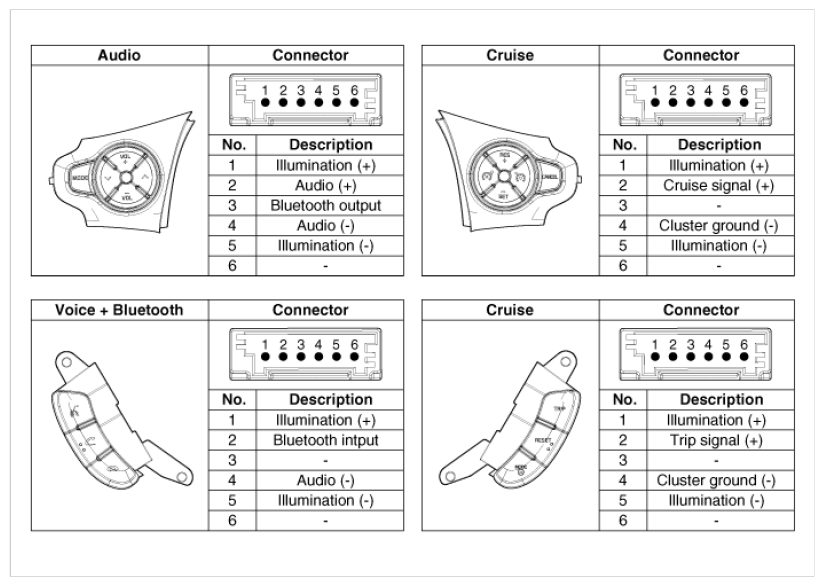

Fig 2: Identifying Audio Connectors
G09782309Courtesy of KIA MOTORS AMERICA, INC.
