Components and Components Location: Components

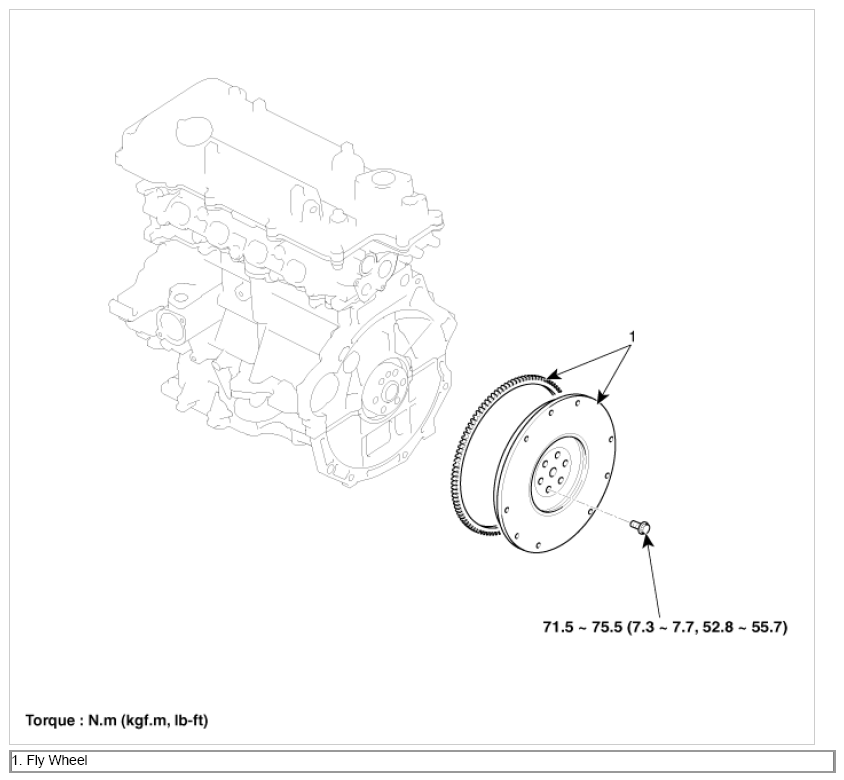

Fig 1: Flywheel Components With Torque Specification
G09772718Courtesy of KIA MOTORS AMERICA, INC.
