Smart Key Control Module Connector End View (M32-A)

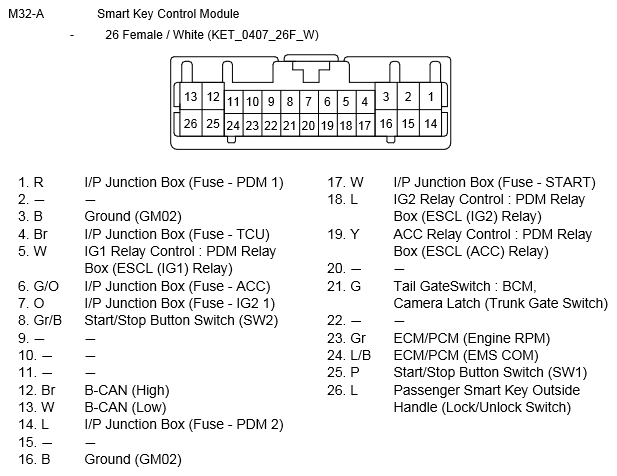

Fig 1: Smart Key Control Module Connector End View (M32-A)
Courtesy of KIA MOTORS AMERICA, INC.
