Component Inspection

Check ECTS Resistance

IG KEY "OFF".
Disconnect ECTS connector.

Measure resistance between signal and ground terminal of ECTS connector (Component Side).

RESISTANCE SPECIFICATION

Temperature [°C (°F)]	Resistance [kΩ]
-40 (-40)	48.14
-20 (-4)	14.13~16.83
0 (32)	5.79
20 (68)	2.31~2.59
40 (104)	1.15
60 (140)	0.59
80 (176)	0.32

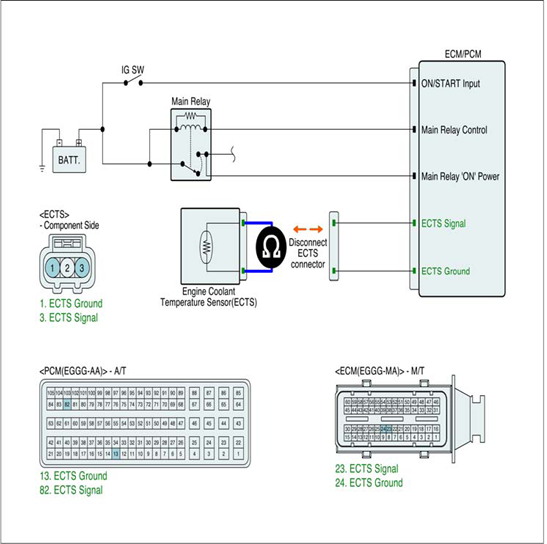

Fig 1: Measuring Resistance Between Signal And Ground Terminal Of ECTS Connector

Courtesy of KIA MOTORS AMERICA, INC.

Is the measured resistance within specification?
YES

Many malfunctions in the electrical system are caused by poor harness(es) and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage. So, check poor connections and the related circuit between ECM and component thoroughly. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

NO

Substitute with a known - good ECTS and check for proper operation. If the problem is corrected, replace ECTS and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
