DTC P2251: O2 Sensor Reference Ground Circuit/Open (Bank 1 Sensor 1)
>>
General Information
>>
Component Location
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Component Location

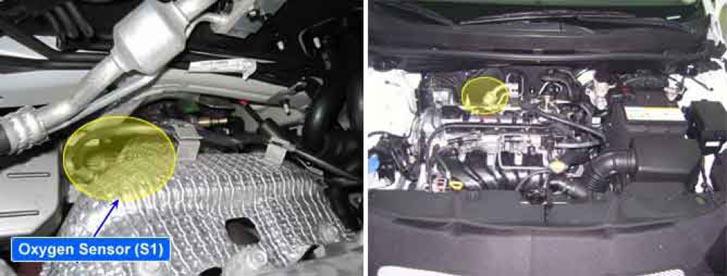

Fig 1: Identifying Oxygen Sensor (S1) Component Location
Courtesy of KIA MOTORS AMERICA, INC.
