Diagnostic Circuit Diagram

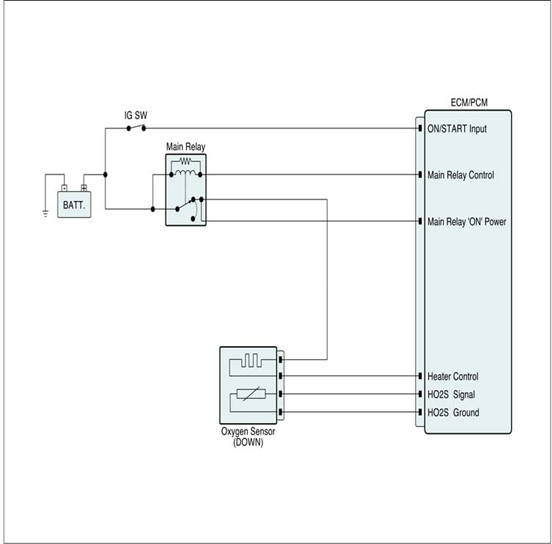

Fig 1: Oxygen Sensor (Down) - Circuit Diagram
G08324651Courtesy of KIA MOTORS AMERICA, INC.

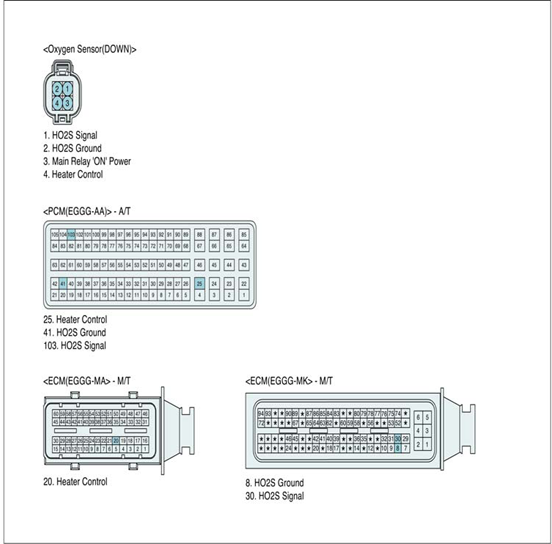

Fig 2: Identifying Oxygen Sensor (Down) Connector Terminals
G08324652Courtesy of KIA MOTORS AMERICA, INC.
