Circuit Diagram: (M/T)

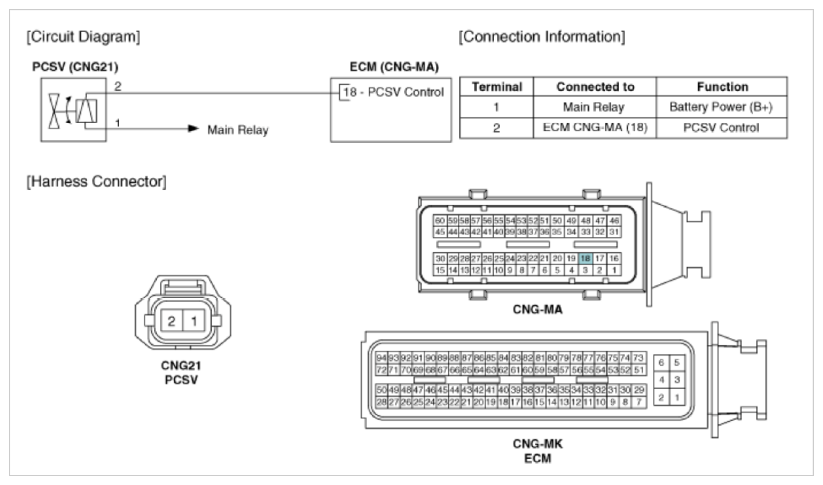

Fig 1: Purge Control Solenoid Valve (PCSV) Circuit Diagram (M/T)
G09748792Courtesy of KIA MOTORS AMERICA, INC.
