Circuit Diagram: (M/T)

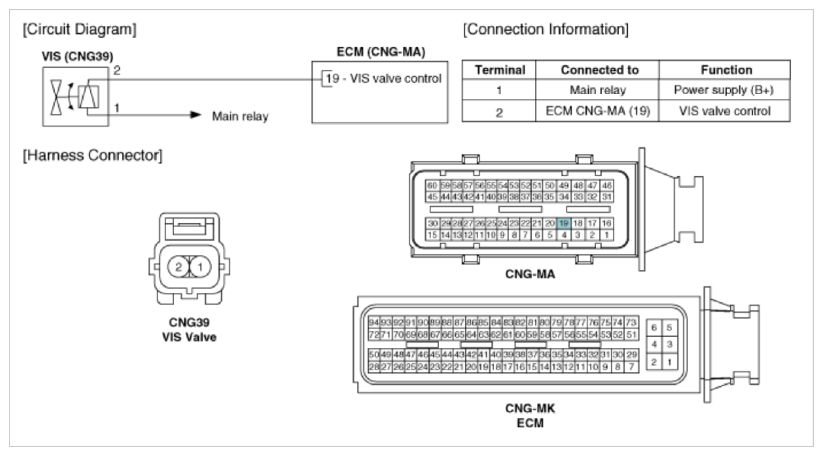

Fig 1: Variable Intake Solenoid (VIS) Valve - Circuit Diagram (M/T)
G09748803Courtesy of KIA MOTORS AMERICA, INC.
