Charging System - 2.0L: Alternator: Specification: Alternator
| Item | Specification | |
|---|---|---|
| Rated voltage | 13.5V, 90A | |
| Speed in use | 1, 000 ~ 18, 000 rpm | |
| Voltage regulator | IC Regulator built-in type | |

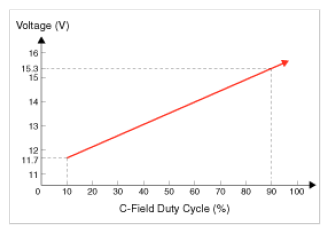

| Regulator Setting Voltage | External mode | Refer to Fig 1 |
| Internal mode | 14.55 ± 0.3V | |
| Temperature Gradient | External mode | 0 ± 3 mV/°C |
| Internal mode | -3.5 ± 2mV/°C | |
