Repair Procedures: Removal

Remove the battery and the battery tray.
(Refer to "CHARGING SYSTEM - 2.0L ".)
Remove the under cover (A).
Tightening torque:

6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

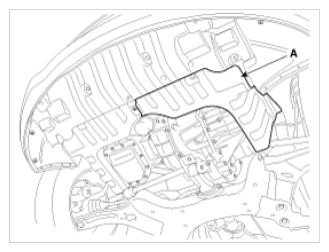

Fig 1: Under Cover
Courtesy of KIA MOTORS AMERICA, INC.
Replace new gasket and the plug after draining the automatic transaxle fluid by removing the drain plug. (Refer to "FLUID ")
Remove the valve body cover (A) and eyebolt (B).
Tightening torque:

11.8 ~ 13.7 N.m (1.2 ~ 1.4 kgf.m, 8.7 ~ 10.1 lb-ft)

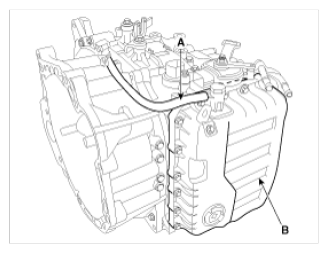

Fig 2: Valve Body Cover & Eyebolt
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Remove installation bolts in the engine room first and then remove others under the vehicle.
Remove the bolt (3ea) after disconnecting the solenoid valve connector (B) and the oil temperature sensor connector (A).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

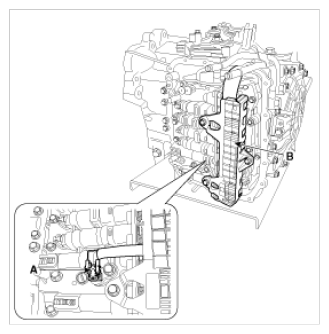

Fig 3: Solenoid Valve & Oil Temperature Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the solenoid valve (B) after removing the solenoid support (A).

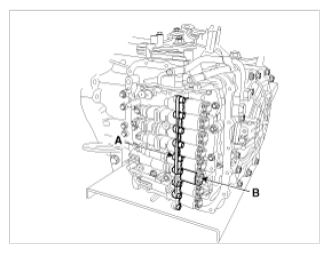

Fig 4: Solenoid Valve & Support
Courtesy of KIA MOTORS AMERICA, INC.
