Engine Oil Schematics

WARNING: This page is about a different variant/trim than selected.

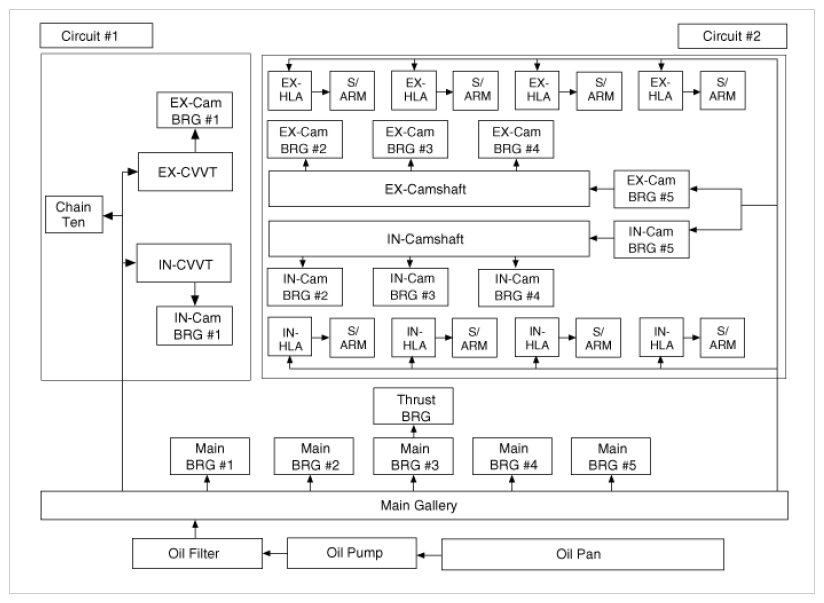

Fig 1: Engine Oil Schematics
G09745426Courtesy of KIA MOTORS AMERICA, INC.
