Circuit Diagram: (M/T)

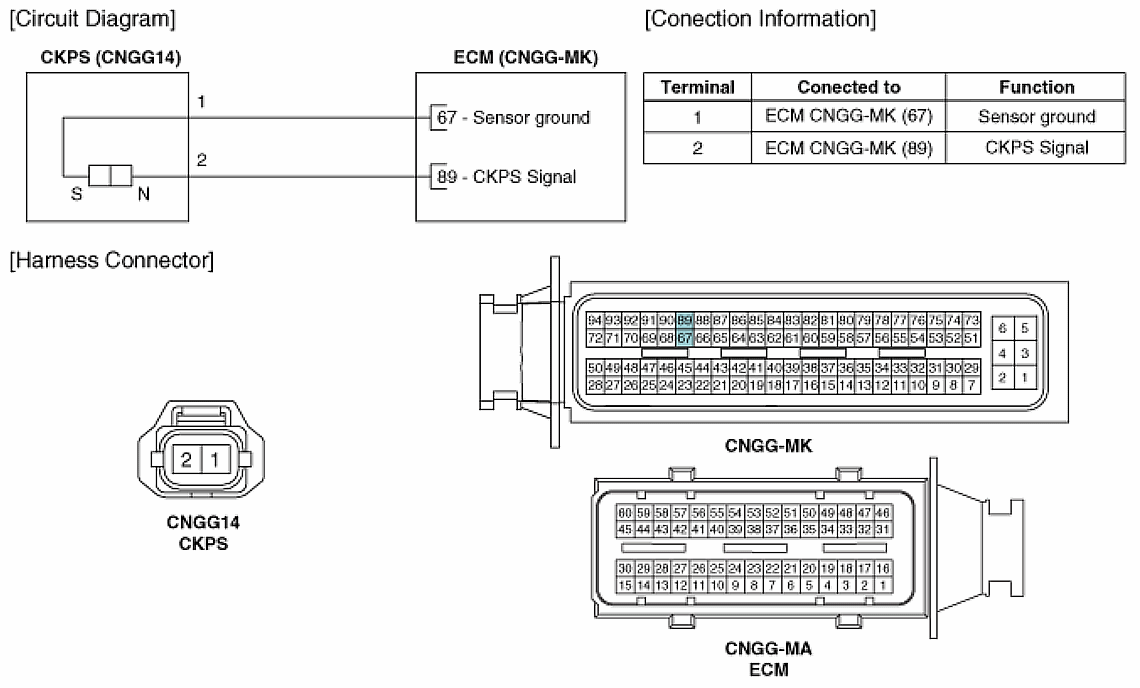

Fig 1: Crankshaft Position Sensor - Circuit Diagram (M/T)

G09742975

Courtesy of KIA MOTORS AMERICA, INC.
