Driver Power Window Switch (2)

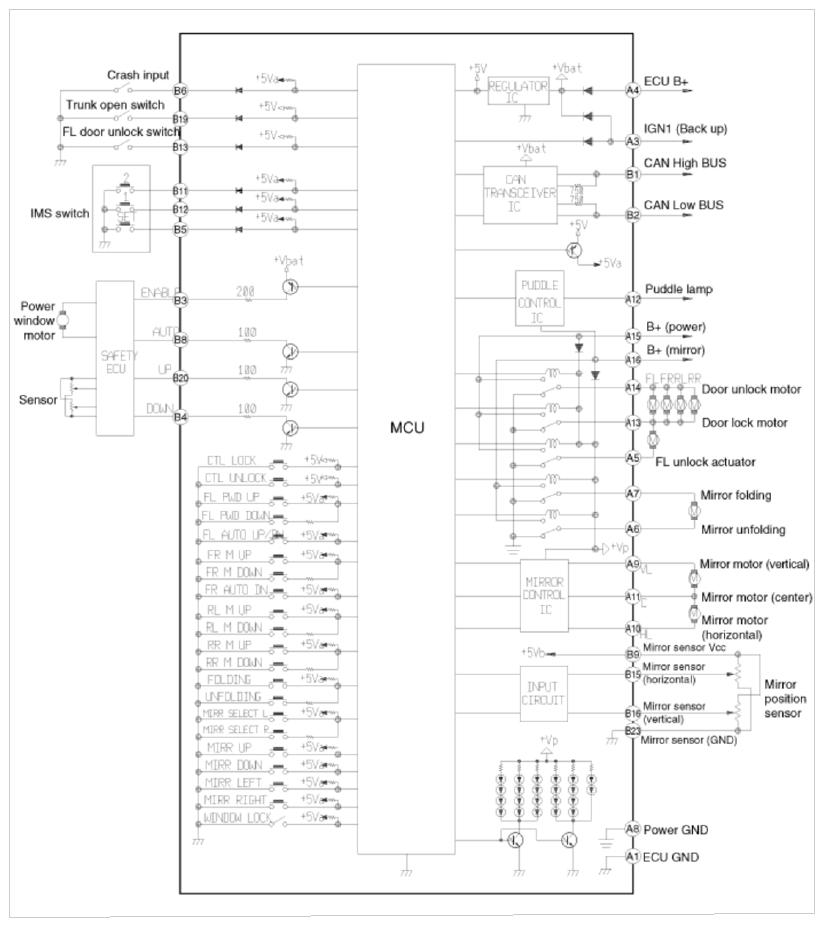

Fig 1: Driver Power Window Switch Schematic Diagrams
G09752839Courtesy of KIA MOTORS AMERICA, INC.
