DTC P0196: Engine Oil Temperature Sensor-Range/Performance
>>
Specification
>>
Signal Waveform & Data
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Signal Waveform & Data

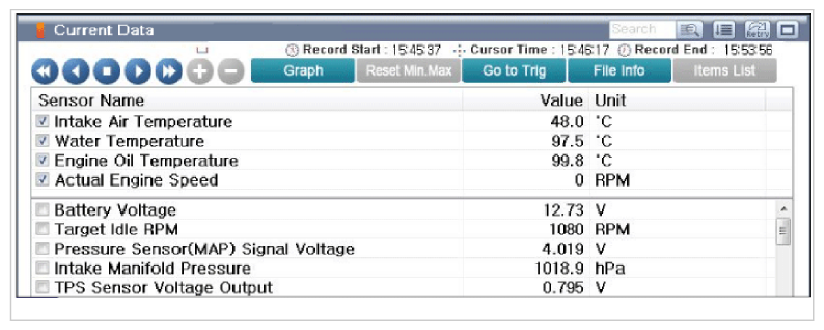

Fig 1: Display - Normal Data Of IATS, ECTS And EOTS At IG ON Screen
Courtesy of KIA MOTORS AMERICA, INC.

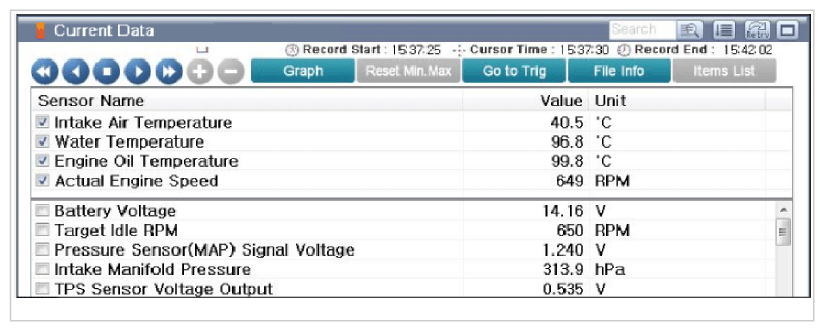

Fig 2: Display - Normal Data Of IATS, ECTS And EOTS Engine At Operating Temperature Screen
Courtesy of KIA MOTORS AMERICA, INC.
