Engine Control System Diagnosis (1 Of 3)
>>
DTC P0123: Throttle Position Sensor 1 Signal Circuit High Input
>>
Specification
>>
Signal Waveform & Data
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Signal Waveform & Data

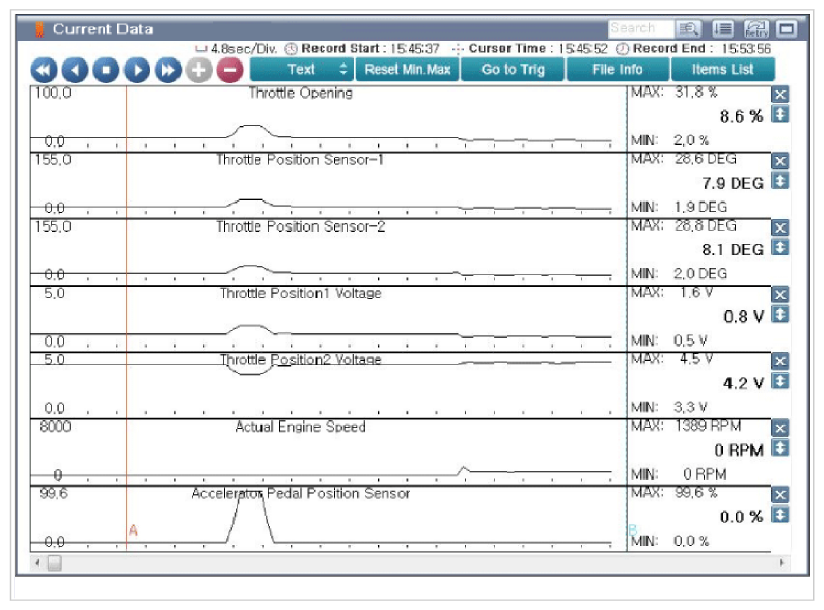

Fig 1: Display - Normal Graph Of TPS1, TPS2 With Acceleration Pedal Not Depressed With IG ON Screen
Courtesy of KIA MOTORS AMERICA, INC.

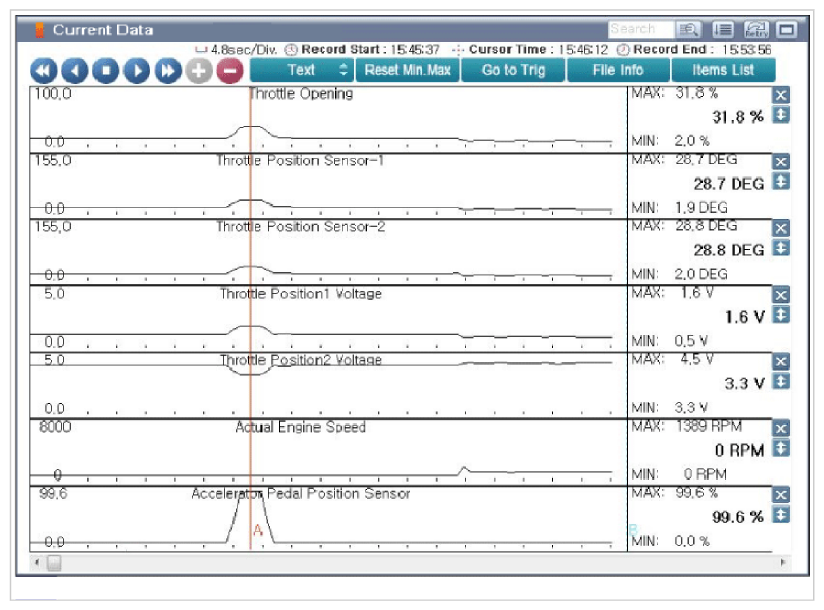

Fig 2: Display - Normal Graph Of TPS1, TPS2 With Acceleration Pedal Depressed With IG ON Screen
Courtesy of KIA MOTORS AMERICA, INC.
