Components and Components Location: Components

Fig 1: Exploded View Of Timing System With Torque Specifications (1 Of 2)
G09750703Courtesy of KIA MOTORS AMERICA, INC.

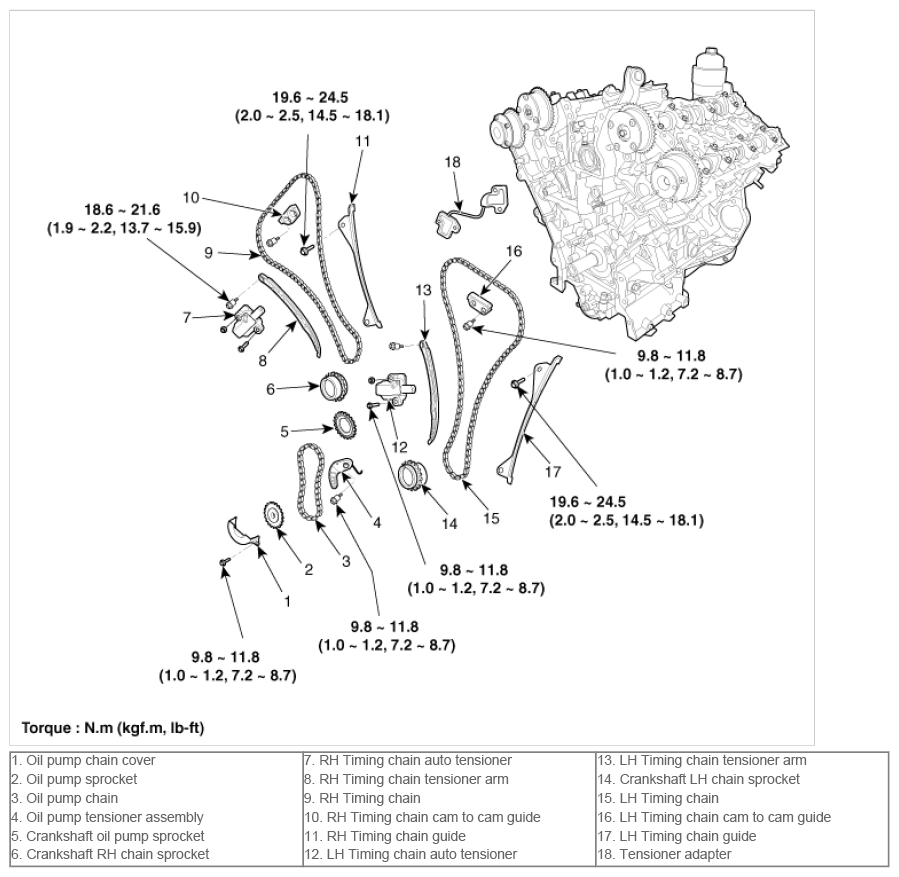

Fig 2: Exploded View Of Timing System With Torque Specifications (2 Of 2)
G09750704Courtesy of KIA MOTORS AMERICA, INC.
