Driver Power Seat Control Switch (For IMS)

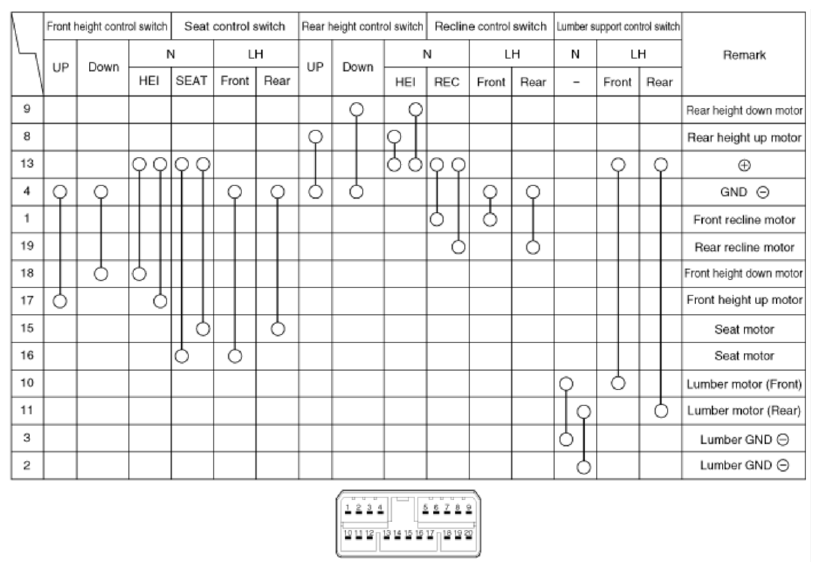

Fig 1: Driver Power Seat Control Switch Continuity Reference Chart (For IMS)
G09752700Courtesy of KIA MOTORS AMERICA, INC.
