BSD Variant Code Reading

Select the "BSD Variant Code Reading" procedure.

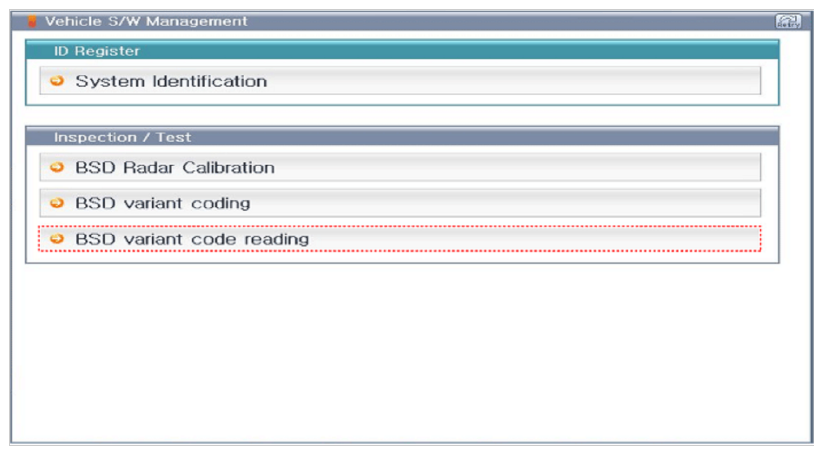

Fig 1: Display - BSD Variant Code Reading Screen (Select)
Courtesy of KIA MOTORS AMERICA, INC.
Proceed the "BSD Variant Code Reading" procedure according to the GDS screen message.

Fig 2: Display - BSD Variant Code Reading Screen (Process)
Courtesy of KIA MOTORS AMERICA, INC.

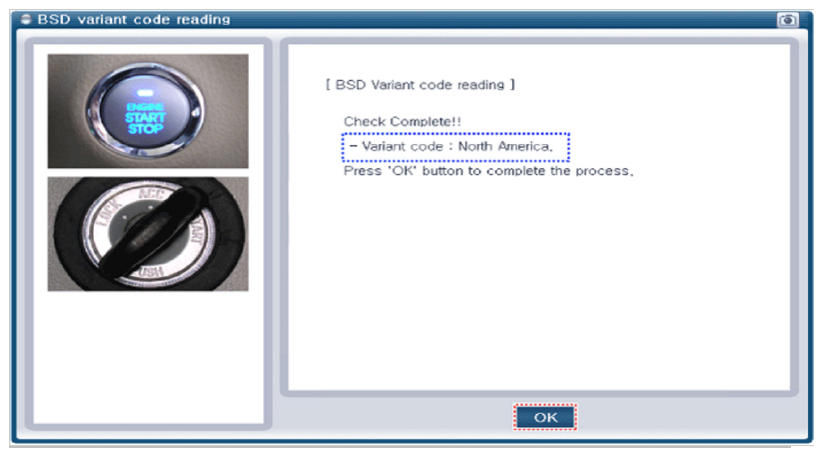

Fig 3: Display - BSD Variant Code - North America Screen
Courtesy of KIA MOTORS AMERICA, INC.

Information

If BSD unit does not set "BSD Variant Coding", "Variant code: None" is verified.

Perform the "BSD VARIANT CODING " certainly.

Fig 4: Display - BSD Variant Code - None Screen
Courtesy of KIA MOTORS AMERICA, INC.
