Engine Oil Schemetics

WARNING: This page is about a different variant/trim than selected.

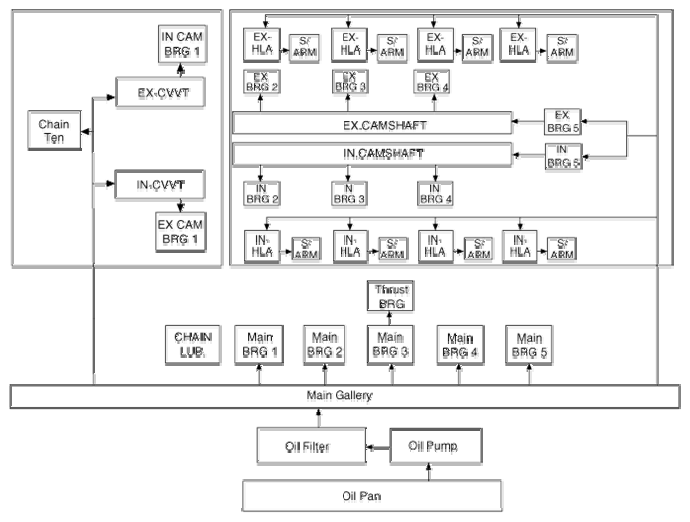

Fig 1: Engine Oil Flow Schemetics
G08330057Courtesy of KIA MOTORS AMERICA, INC.
