Engine Control System Diagnosis (3 Of 3) - 2.0L
>>
DTC P2251: O2 Sensor Reference Ground Circuit-Open (Bank 1 Sensor 1)
>>
General Information
>>
Diagnostic Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Circuit Diagram

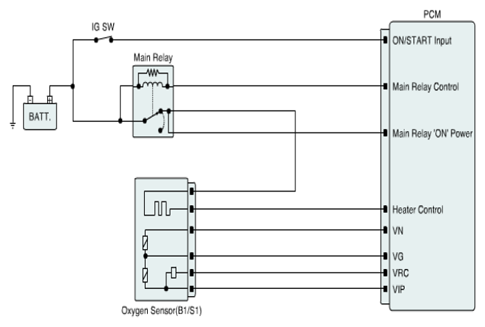

Fig 1: Oxygen Sensor (B1/S1) - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.

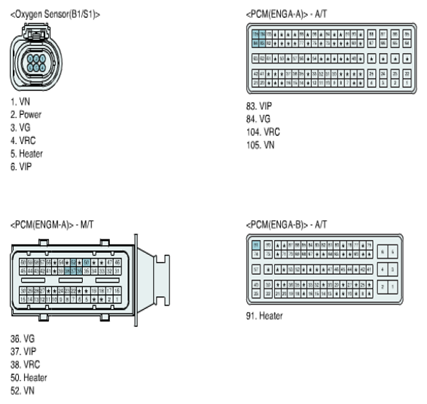

Fig 2: Identifying Oxygen Sensor (B1/S1) And PCM Connectors
Courtesy of KIA MOTORS AMERICA, INC.
