Control Circuit Inspection

Check short to ground in harness
1. IG "OFF" and disconnect VIS connector.
2. IG "ON".
3. Measure voltage between control terminal of VIS harness connector and chassis ground.
  Specification: Approx. 3.5V

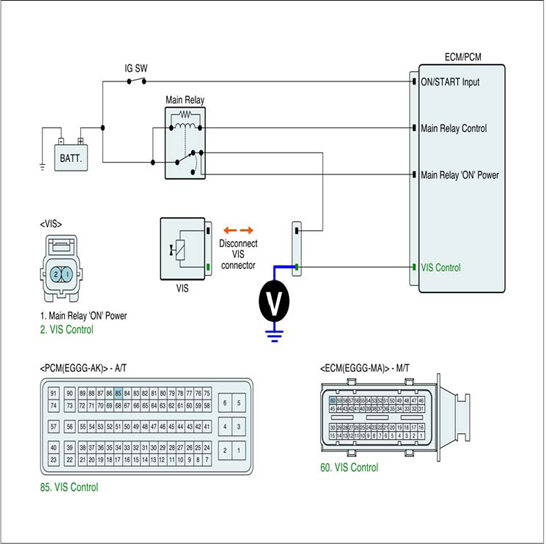

  Fig 1: Measuring Voltage Between Control Terminal Of VIS Harness Connector And Chassis Ground
  Courtesy of KIA MOTORS AMERICA, INC.
4. Is the measured voltage within specification?
  YES

  Go to "COMPONENT INSPECTION " procedure.

  NO

  Repair open or short to ground in harness, and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
