Control Circuit Inspection

Check voltage
1. IG "OFF" & Disconnect HO2S(S2) connector.
2. IG "ON".
3. Measure voltage between control terminal of the OCV harness connector and chassis ground.
  Specification: Approx. 3.5V

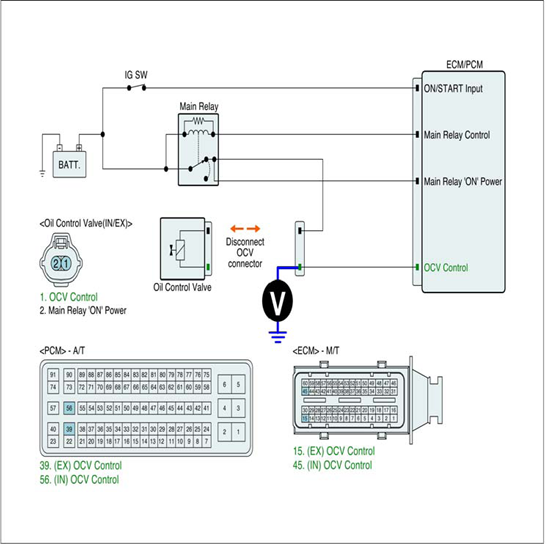

  Fig 1: Measuring Voltage Between Control Terminal Of OCV Harness Connector And Chassis Ground
  Courtesy of KIA MOTORS AMERICA, INC.
4. Is the measured voltage within specification?
  YES

  Go to "COMPONENT INSPECTION " procedure.

  NO

  Repair or replace as necessary and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
