Circuit Diagram

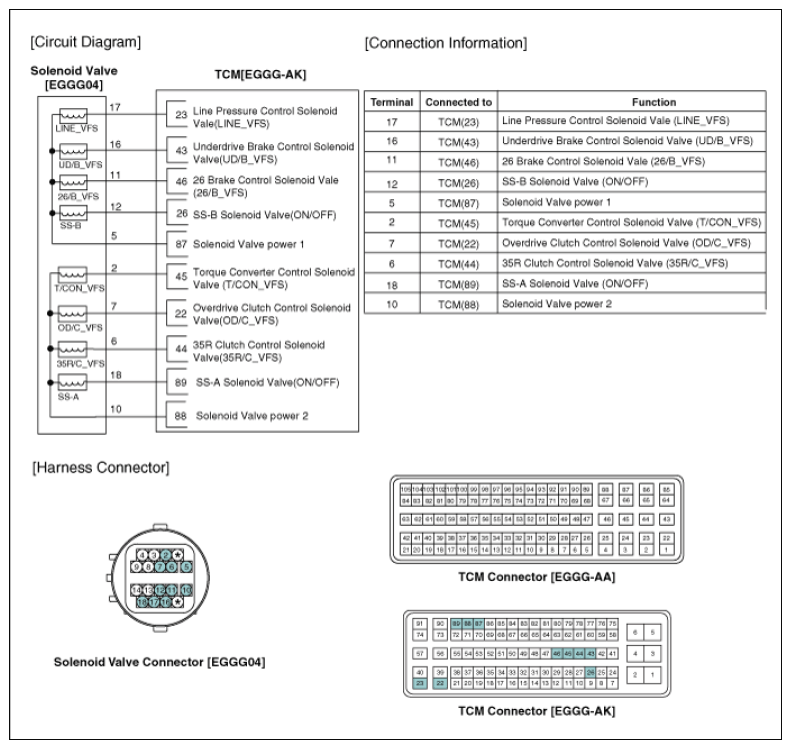

Fig 1: 26 Brake Control Solenoid Valve - Circuit Diagram

Courtesy of KIA MOTORS AMERICA, INC.
