Check CAN Communication Line For Open

  1. Ignition "OFF".
  2. Disconnect PCM harness connector.
  3. Measure resistance between High signal terminal and Low signal terminal of PCM harness connector.

    Specification :  Approx. 110~130Ω

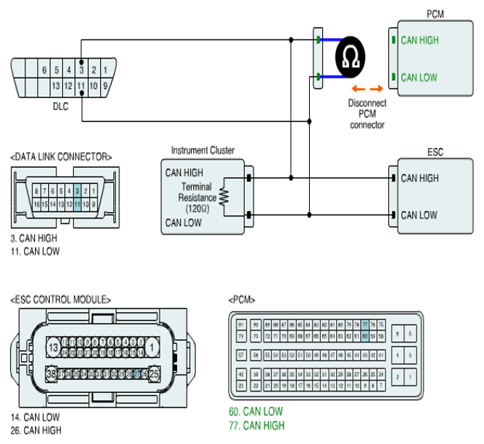

    Fig 1: Measuring Resistance Between High Signal Terminal & Low Signal Terminal Of PCM Harness Connector
    G07383065Courtesy of KIA MOTORS AMERICA, INC.
  4. Is resistance within the specification?

    YES

    • Go to next step as below.

    NO

    • Check for open in wiring related to the CAN communication (PCM, EPS, MTS and vertical resistor at the junction box). Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
      NOTE: Vertical Resistor Resistance : Approx. 110~130Ω
