Cabin Air Filter / Purifier: Service and Repair

Climate Control Air Filter Replacement (If equipped)

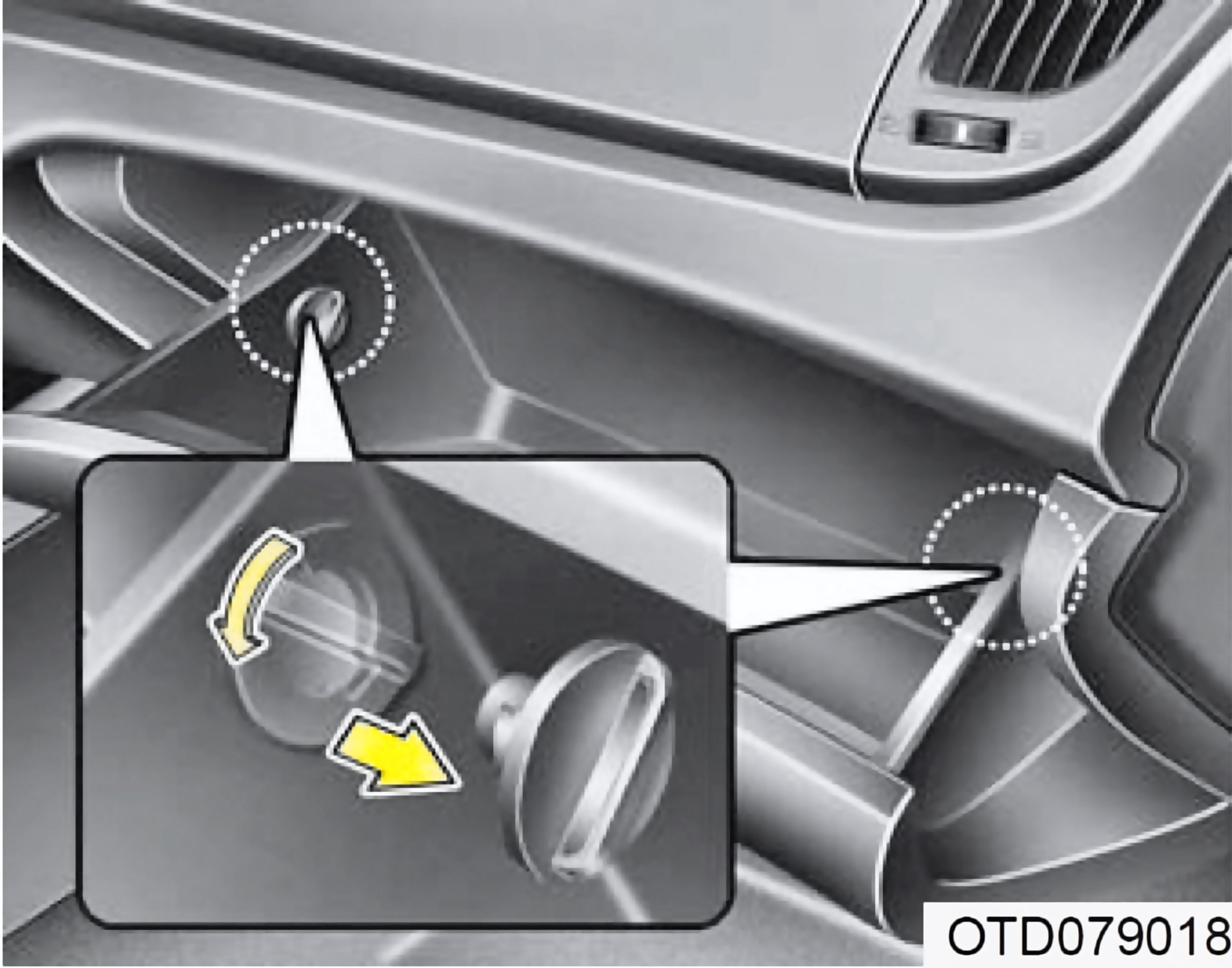

1. With the glove box open, remove the stoppers from both sides.

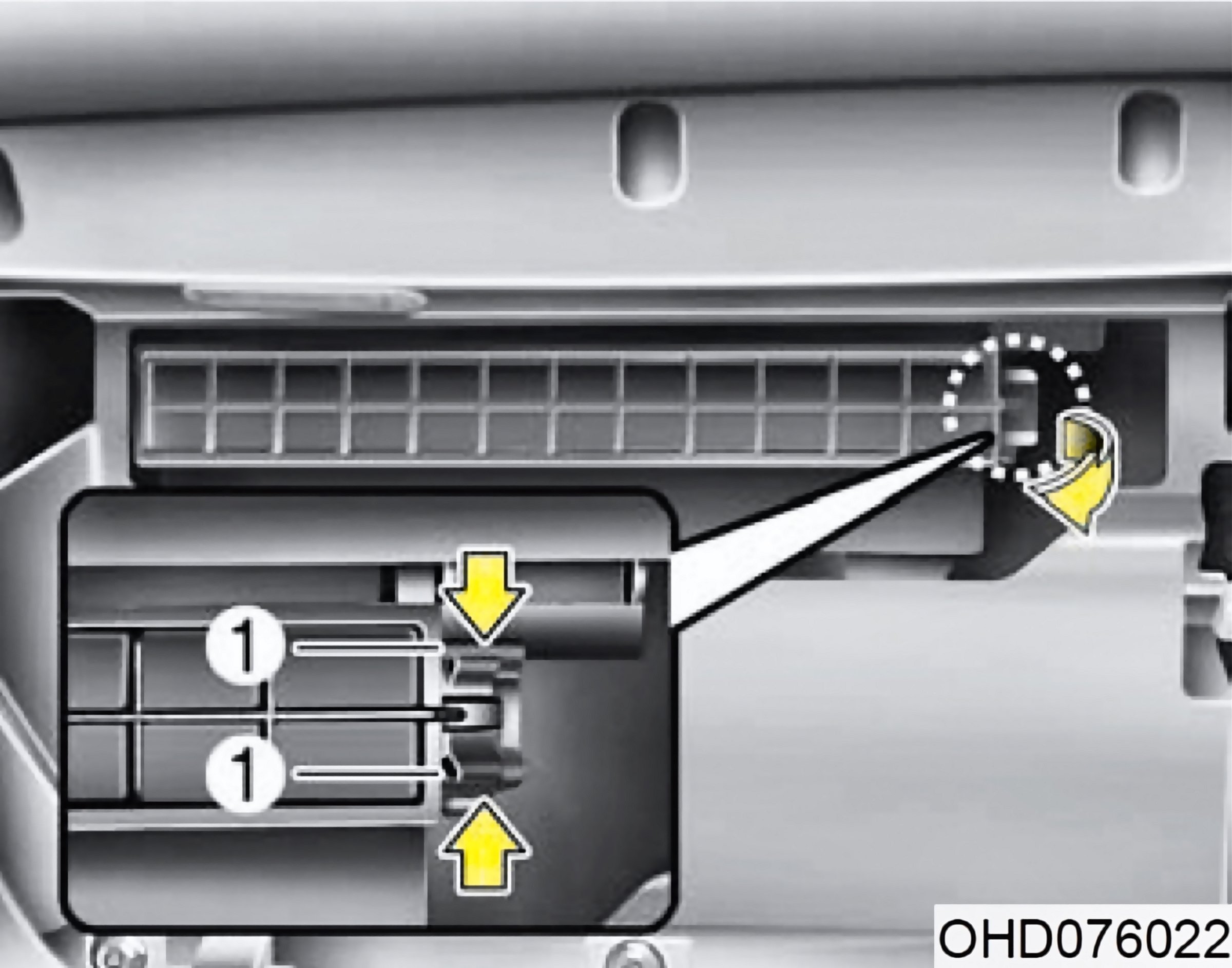

3. Remove the climate control air filter.

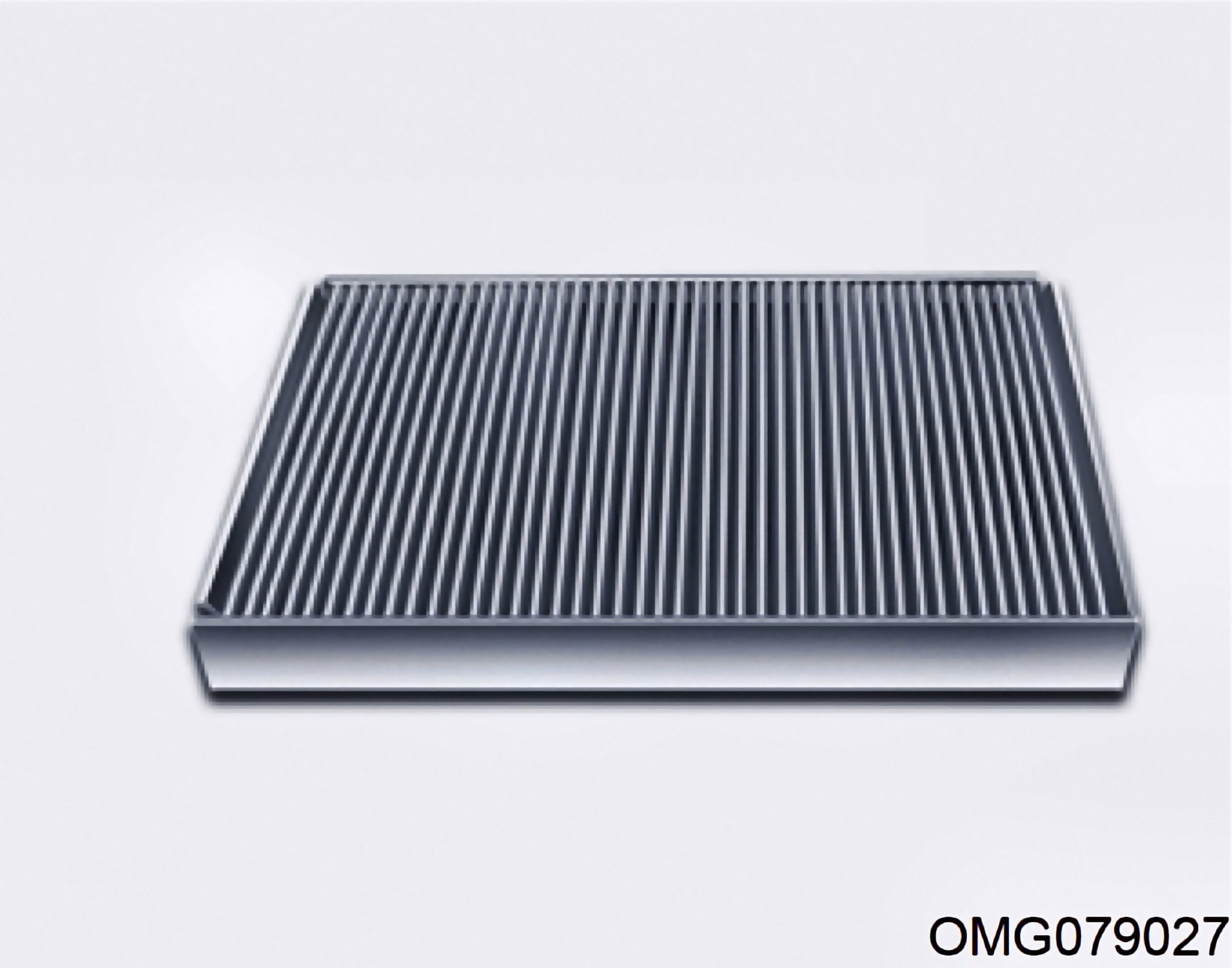

4. Replace the climate control air filter.
5. Reassemble in the reverse order of disassembly.

When replacing the climate control air filter install it properly. Otherwise the system may produce noise and the effectiveness of the filter may be reduced.
