Seat Temperature Element: Testing and Inspection

Inspection

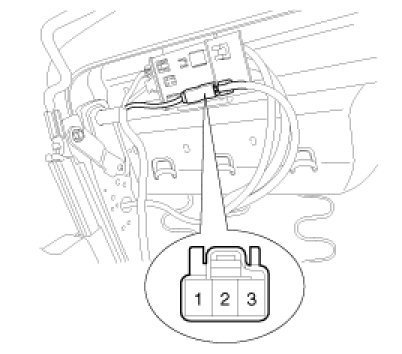

1. Check for continuity and measure the resistance between No.1 terminal and No.3 terminal of connector.





Standard value
Leather seat : 2.4Ohms ± 10% / set
Fabric seat : 3.24Ohms ± 10% / set

2. Operate the seat warmer after connecting the connectors, and then check the thermostat by measuring the temperature of seat surface.

Standard value
ON : 34 ± 5°C (93.2 ± 9°F)
OFF : 43 ± 4°C (109.4 ± 7°F)
