Power Mirror Motor: Testing and Inspection

Inspection

1. Remove the front door quadrant inner cover. Take care not to damage fixing clips.

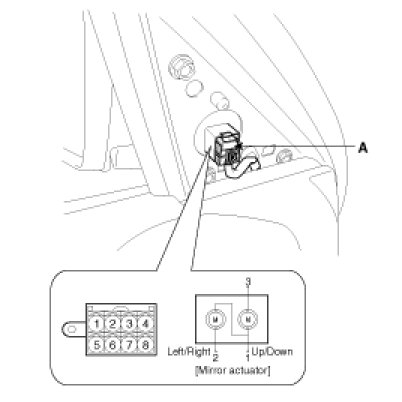

2. Disconnect the power door mirror connector (A) from the harness.
3. Apply battery voltage to each terminal as shown in the table and verify that the mirror operates properly.
