Engine Control System Diagnosis (1 Of 3) - 2.0L
>>
DTC P0136: O2 Sensor Circuit(Bank 1/Sensor 2)
>>
General Information
>>
Diagnostic Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

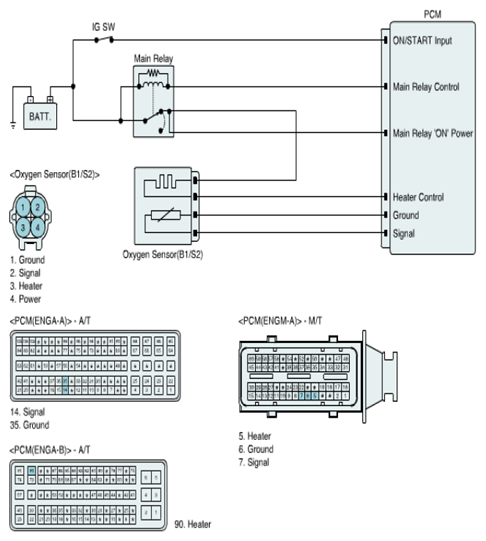

Diagnostic Circuit Diagram
Fig 1: Oxygen Sensor (B1/S2) - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
