Sorento SX, FWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 3.5L
>>
Knock Sensor (KS)
>>
Schematic Diagrams
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram

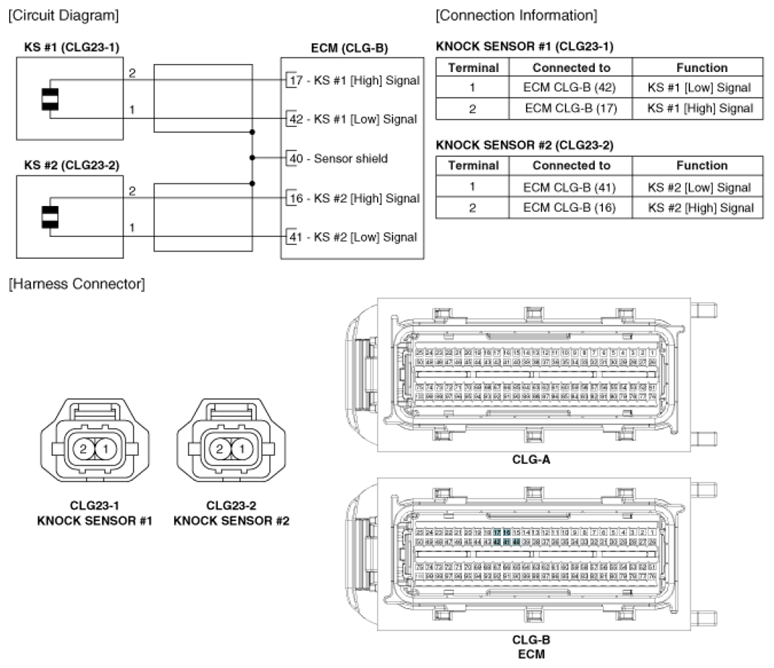

Fig 1: Knock Sensor - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
