Diagnostic Circuit Diagram

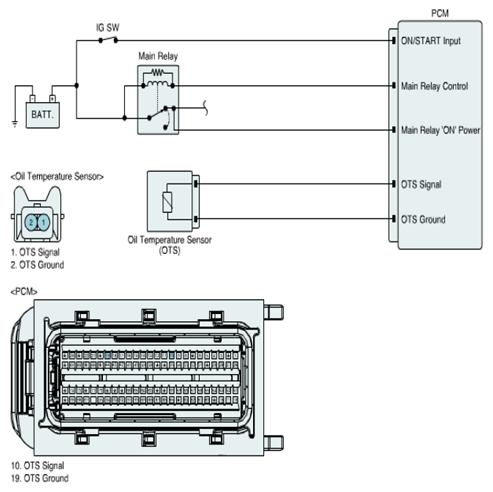

Fig 1: Oil Temperature Sensor - Diagnostic Circuit Diagram
G07392992Courtesy of KIA MOTORS AMERICA, INC.
