Lower Crash Pad Panel Replacement

Remove the glove box.
Remove the side air vent.
Remove the DVD cover (A).

Fig 1: DVD Cover
Courtesy of KIA MOTORS AMERICA, INC.

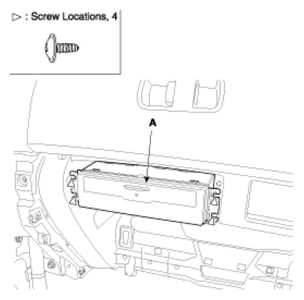

Loosen the mounting screws, remove the DVD (A).

Fig 2: DVD Player
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connector (A).

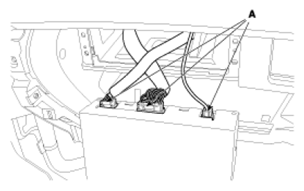

Fig 3: DVD Connectors
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the upper glove box mounting screws, then remove the upper glove box (A).

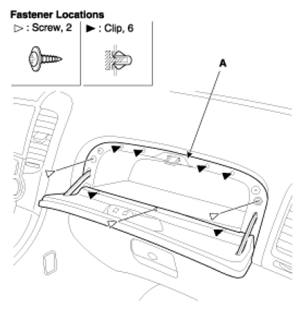

Fig 4: Upper Glove Box
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the panel mounting bolts and screws.
After disconnecting the connector, remove the panel (A).

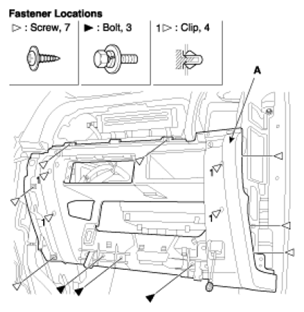

Fig 5: Lower Crash Pad Panel
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
