Diagnostic Circuit Diagram

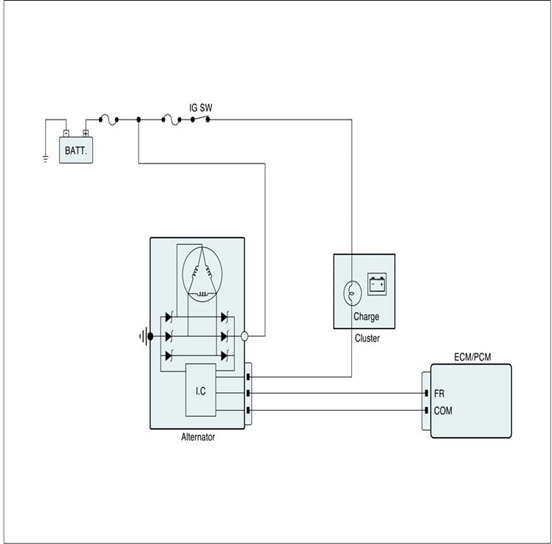

Fig 1: Alternator - Circuit Diagram
G08325065Courtesy of KIA MOTORS AMERICA, INC.

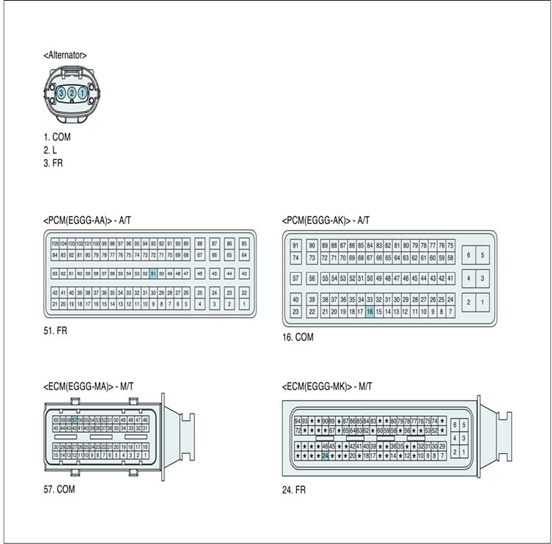

Fig 2: Identifying Alternator Connector Terminals
G08325066Courtesy of KIA MOTORS AMERICA, INC.
