Signal Waveform & Data

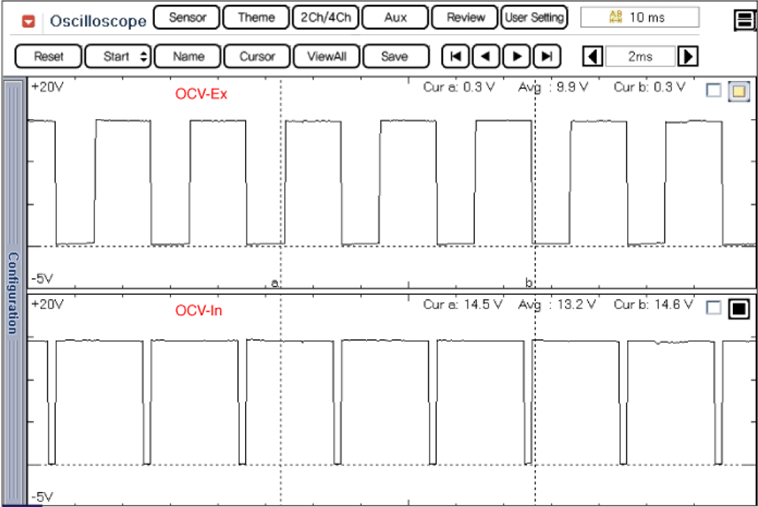

Fig 1: Oil Control Valve (Ex And In) Signal Waveform (At Idle)

Courtesy of KIA MOTORS AMERICA, INC.

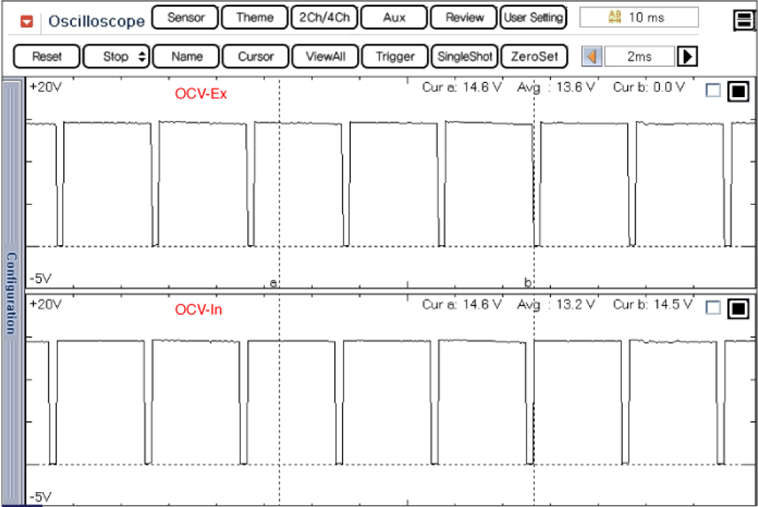

Fig 2: Oil Control Valve (Ex And In) Signal Waveform (At Acceleration)

Courtesy of KIA MOTORS AMERICA, INC.
