Home >> Kia >> 2012 >> Rio L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Component Connectors >> EM21 Front To Main Harness Connection
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

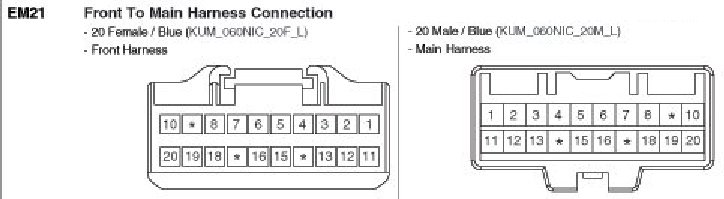

EM21 Front To Main Harness Connection

EM21 Front To Main Harness Connection:
