Component Inspection

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

■ Actuator Test Check

Connect scantool to Data Link Connector (DLC)
IG key "ON"
Perform Actuator Test with scantool.

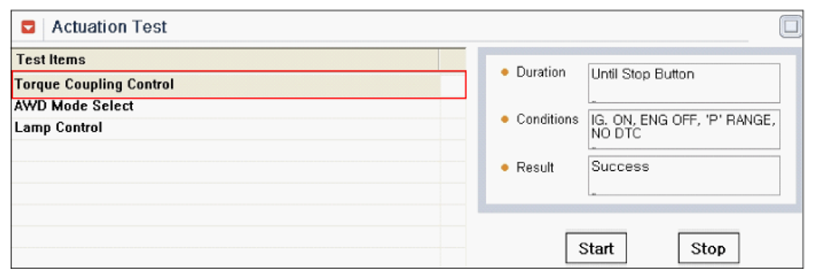

Fig 1: Screen Display - Torque Coupling Control
Courtesy of KIA MOTORS AMERICA, INC.
Are any DTCs present?
YES
- Substitute with a known-good "Coupling" and check for proper operation. If the problem is corrected, replace "Coupling" and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
