Repair procedures: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Loosen the mounting bolts and then remove the under cover (A).
    Fig 1: Identifying Under Cover And Mounting Bolts
    G08309680Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the connector and then remove the ambient temperature sensor (A).

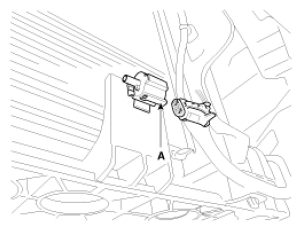

    Fig 2: Identifying Ambient Temperature Sensor
    G08309681Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse order of removal.
