Components and Components Location: Components
WARNING:
This page is about a different variant/trim than selected.

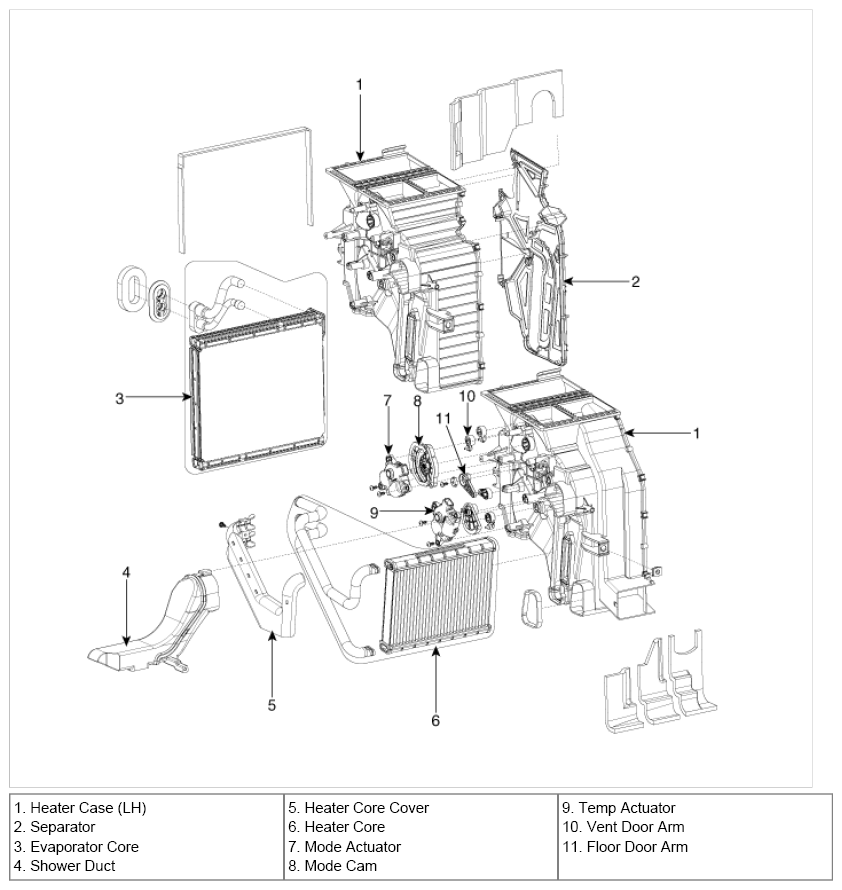

Fig 1: Identifying Heater Unit Components (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

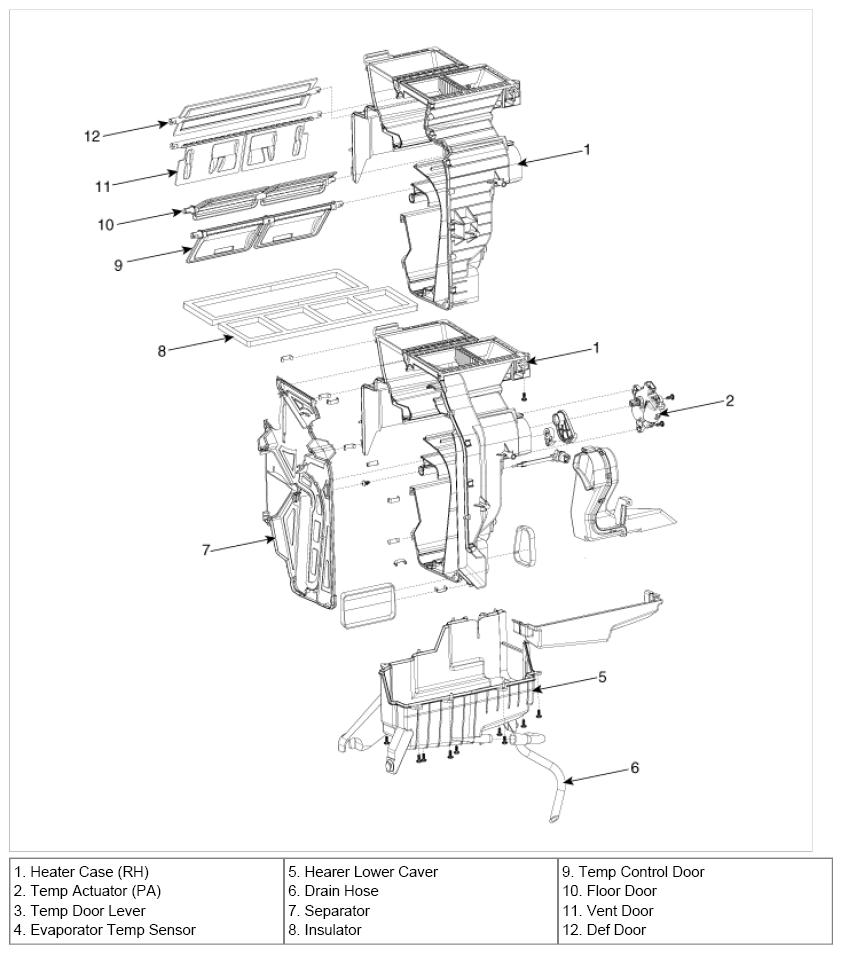

Fig 2: Identifying Heater Unit Components (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
