Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System Diagnosis (2 Of 3) - 2.4L - Except HEV
>>
DTC P0611: Fuel Injector Control Module Performance
>>
General Information
>>
Diagnostic Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

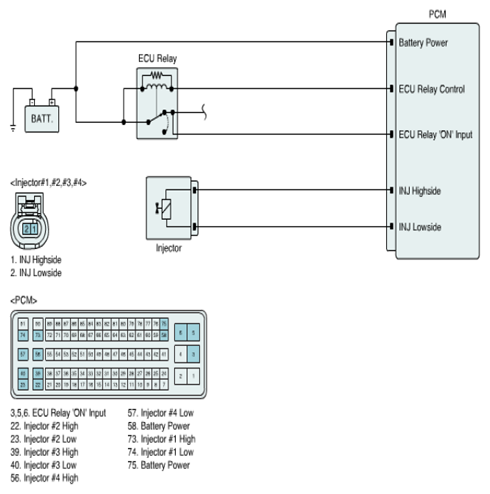

Diagnostic Circuit Diagram
Fig 1: Diagnostic Circuit Diagram Of Injector
Courtesy of KIA MOTORS AMERICA, INC.
