Component Inspection_2-2013

Vehicle S/W Management.
Oxygen sensor test-linear Click.

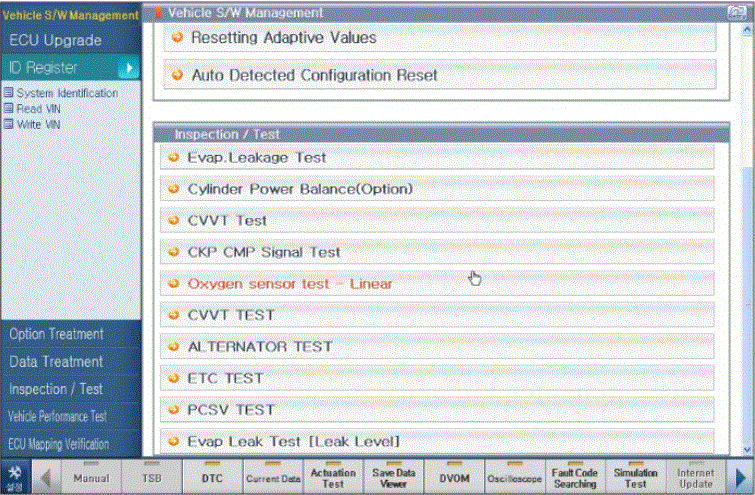

Fig 1: Identifying Oxygen Sensor Test-Linear Screen
Courtesy of KIA MOTORS AMERICA, INC.
Test Preparation.
Please have vehicle ready in following conditions- Press (OK) button to start test.

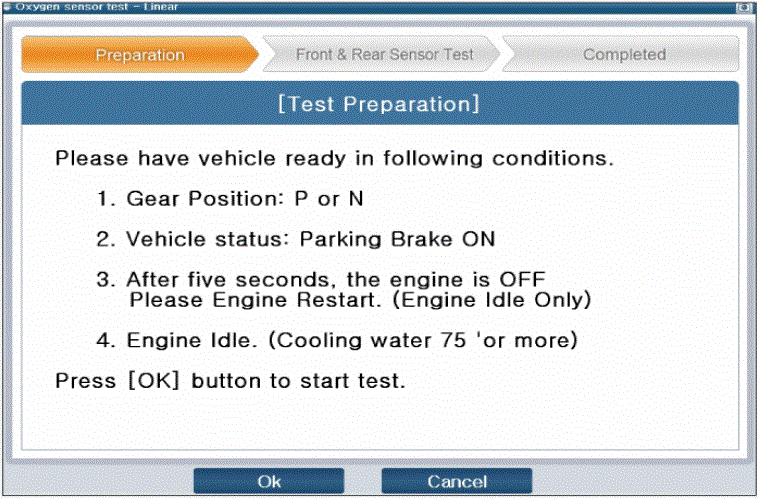

Fig 2: Identifying Vehicle Preparation Screen
Courtesy of KIA MOTORS AMERICA, INC.
Front & Rear sensor Test - Monitoring Oxygen sensor Signal.

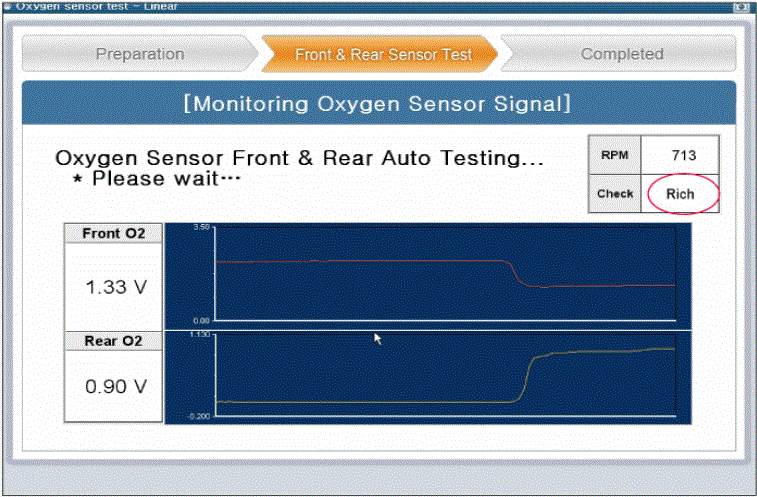

Fig 3: Identifying Oxygen Sensor Monitoring Screen (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Identifying Oxygen Sensor Monitoring Screen (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

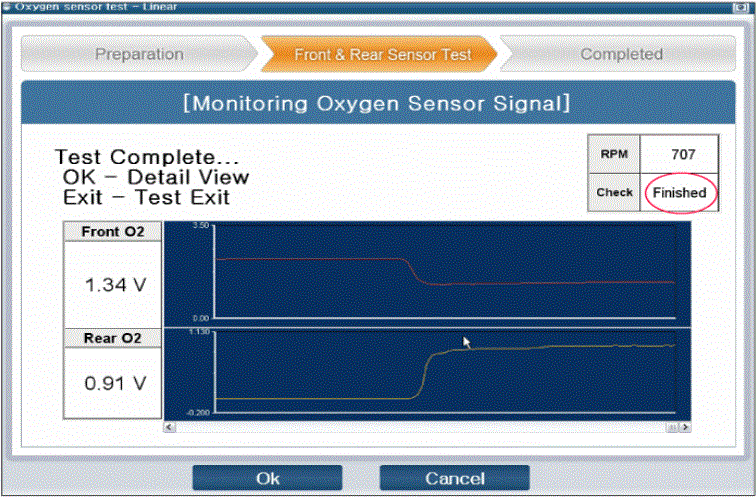

Fig 5: Identifying Oxygen Sensor Monitoring Screen (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Completed.

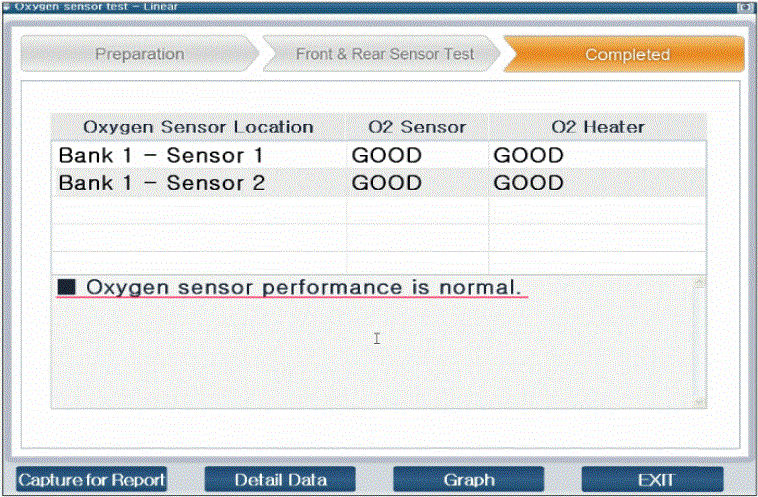

Fig 6: Identifying Oxygen Sensor Test-Linear Completion Screen
Courtesy of KIA MOTORS AMERICA, INC.
Detail Data.

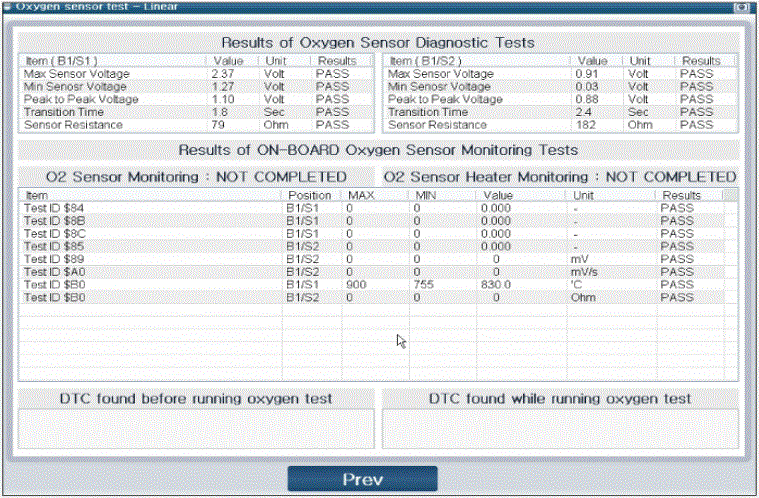

Fig 7: Identifying Oxygen Sensor Test-Linear Results Screen
Courtesy of KIA MOTORS AMERICA, INC.
Graph.

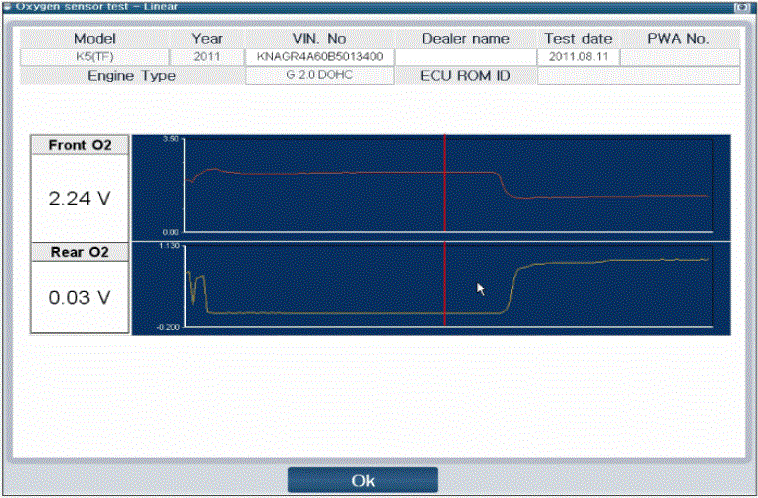

Fig 8: Identifying Oxygen Sensor Test-Linear Results Graph Screen
Courtesy of KIA MOTORS AMERICA, INC.
