GDS Data Analysis
- Connect GDS to Data Link Connector. (DLC)
- IG "ON" & ENG "ON".
- Press the brake pedal.

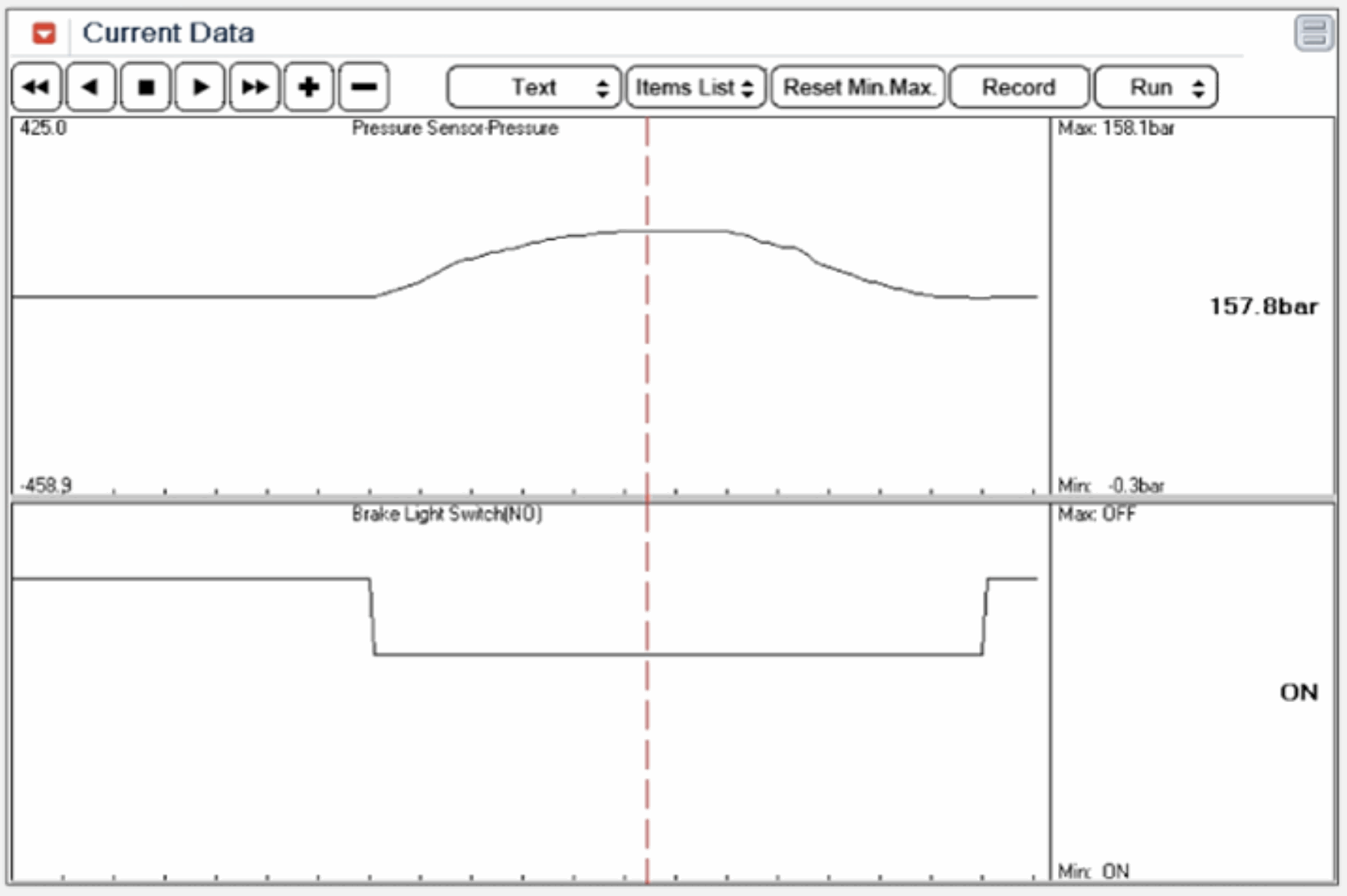

- Monitor the "PRESSURE SENSOR" parameter on the Current Data menu of the GDS
- Whenever brake pedal is pushed down, is the pressure sensor's GDS data changed ?
YES
Fault is caused by having been repaired and HECU memory was not cleared.
Clear the DTC and then go to "Verification of Vehicle Repair" procedure.
NO
Go to next step.
Specification :
Approx. 60bar ~150bar (There is difference in displayed parameter according to braking force)
