A/V & Navigation Head Unit

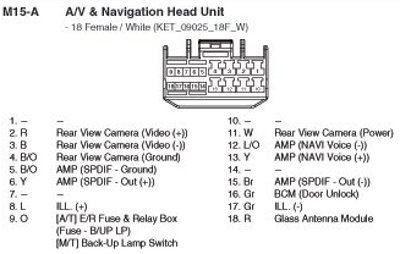

M15-A A/V & Navigation Head Unit:

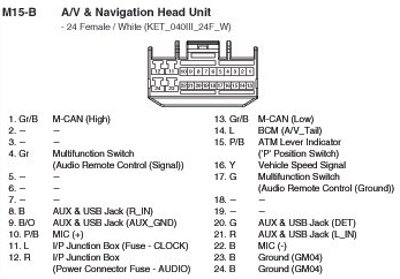

M15-B A/V & Navigation Head Unit:





M15-USB A/V & Navigation Head Unit:

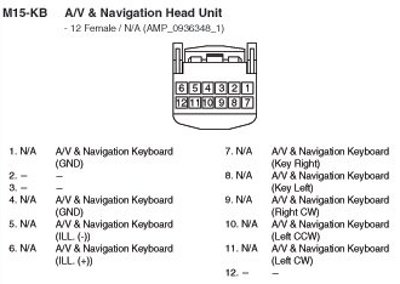

M15-KB A/V & Navigation Head Unit:
