System Diagram

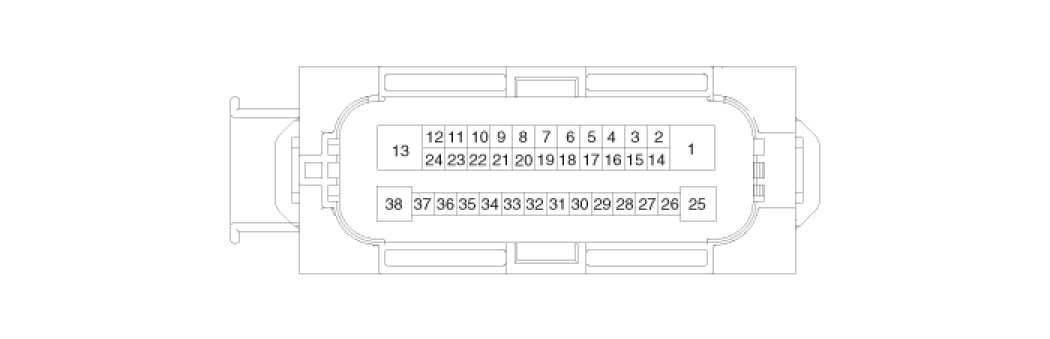

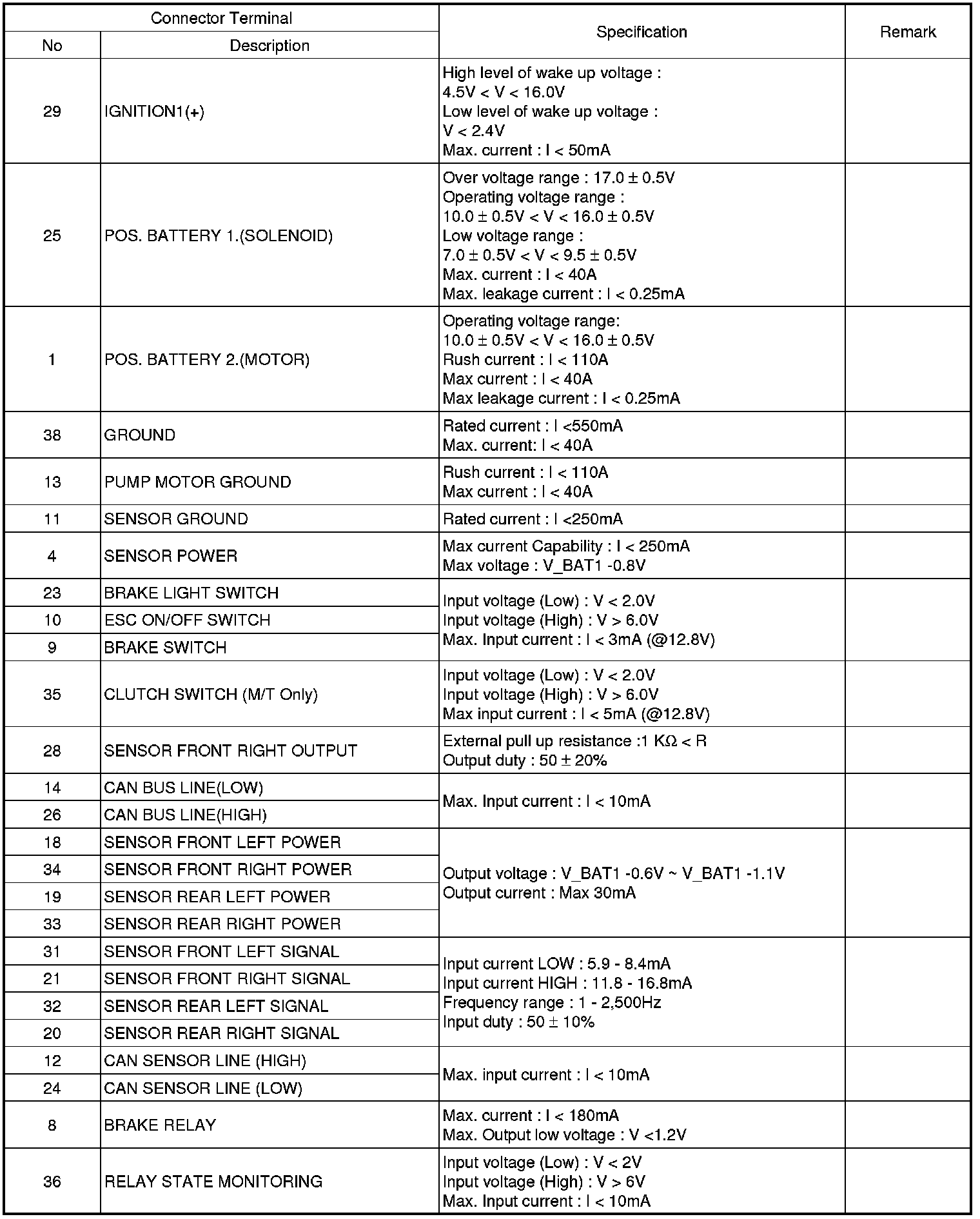

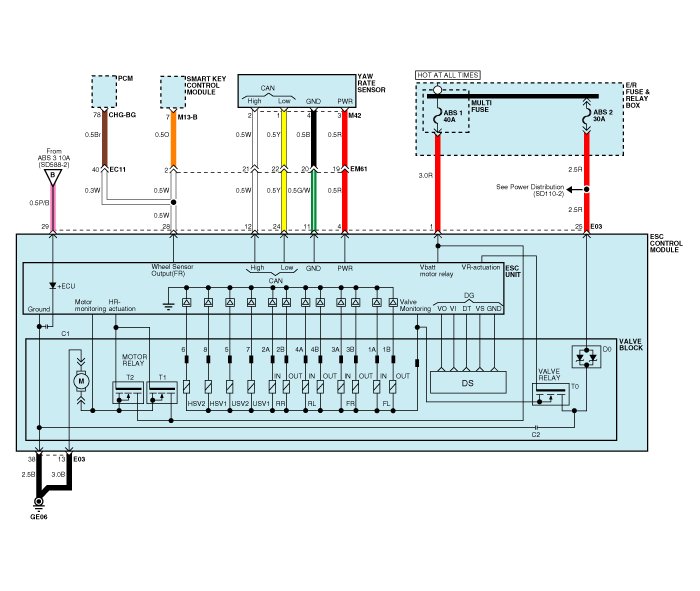

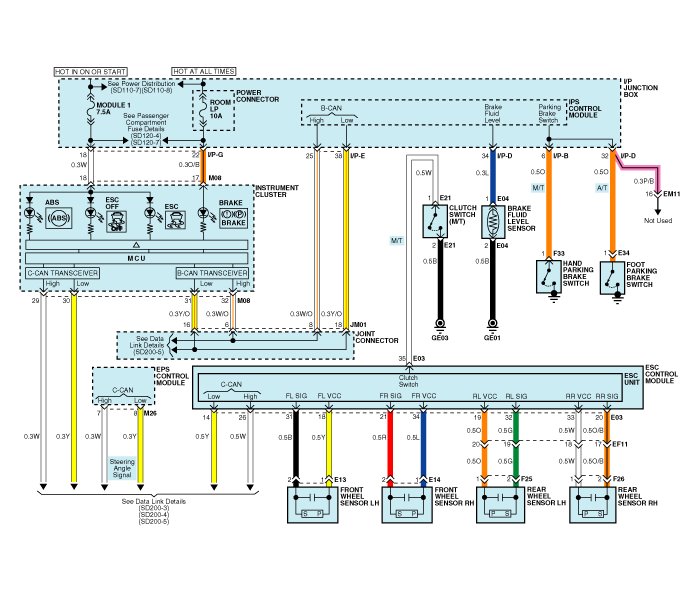

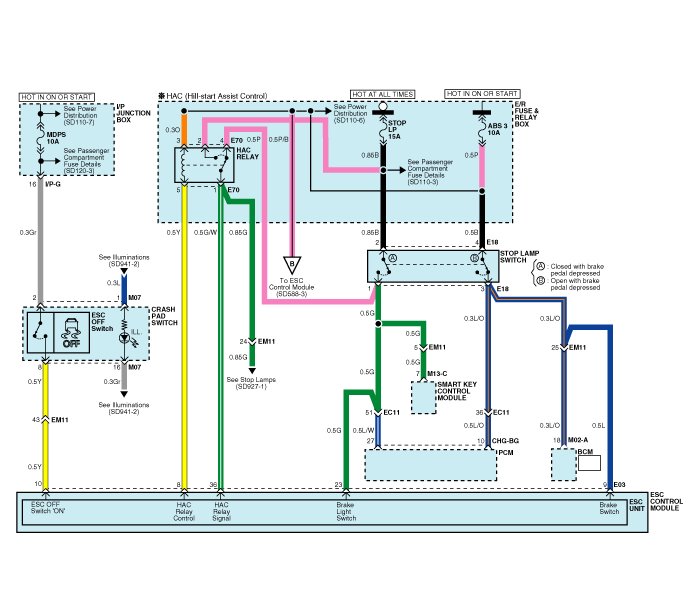

Circuit Diagram - ESC (1)Circuit Diagram - ESC (2)Circuit Diagram - ESC (3)ESC connector input/output
