Electrical Diagrams





Circuit Diagram

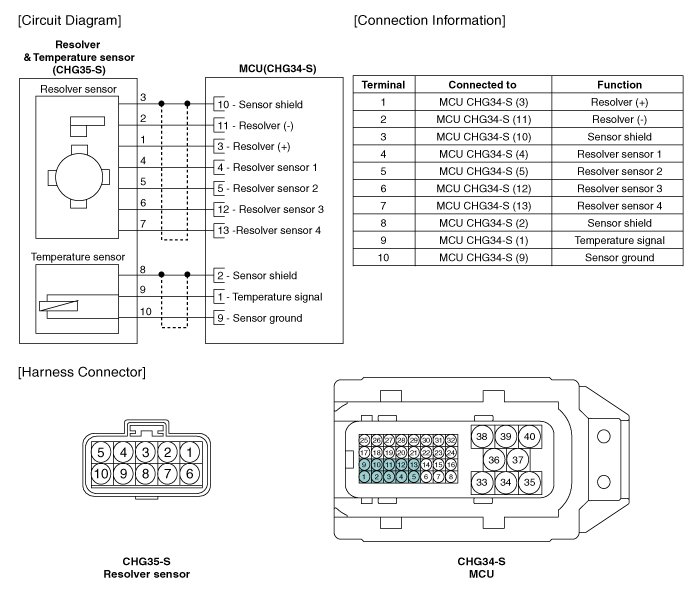

Motor temperature sensor (Hybrid Drive Motor)

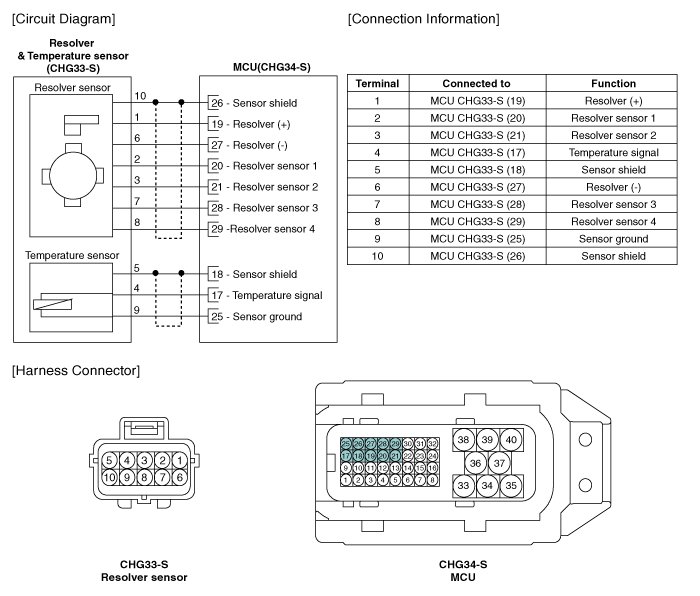

Motor temperature sensor (HSG)
