BMS Control Module Connector End View (F71-V2)

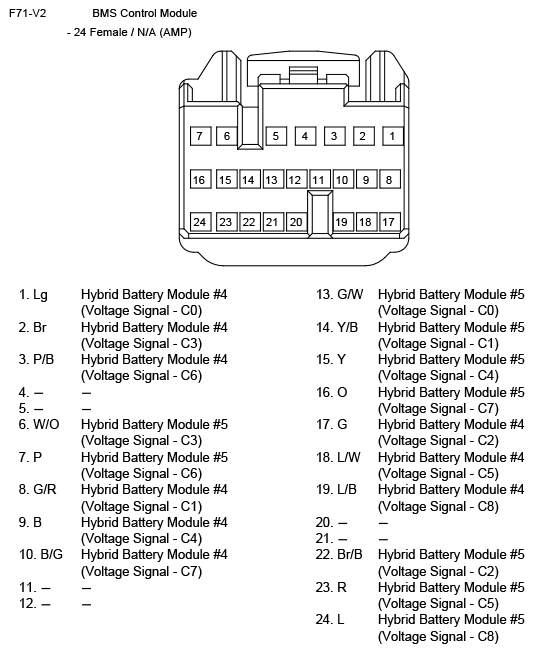

Fig 1: BMS Control Module Connector End View (F71-V2)
G10798085Courtesy of KIA MOTORS AMERICA, INC.
