Repair Procedures: Removal
- Use fender covers to avoid damaging painted surfaces.
- To avoid damage, unplug the wiring connectors carefully while holding the connector portion.
- Mark all wiring and hoses to avoid misconception.
- To release the fuel system pressure before removing the engine assembly, start the engine with the fuel pump relay removed. And then turn off the ignition switch after engine stops.

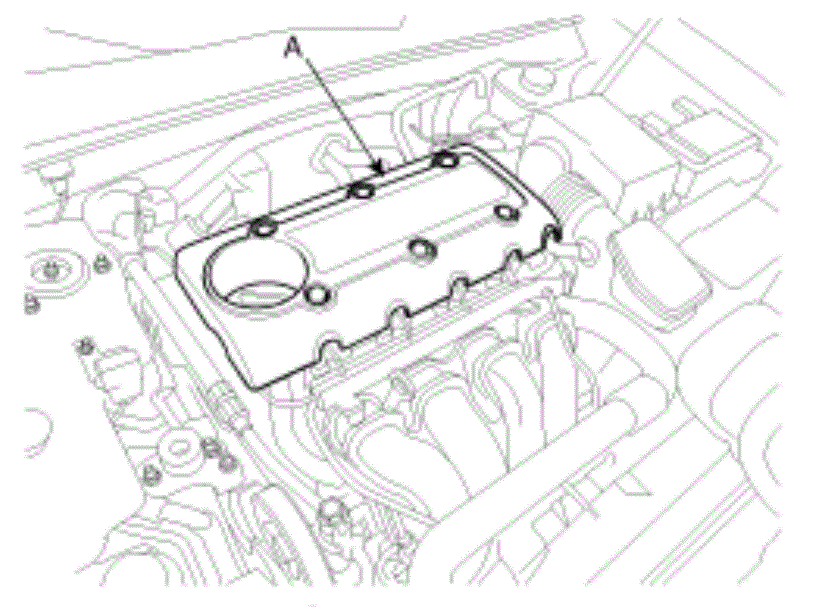

- Remove the engine cover (A).

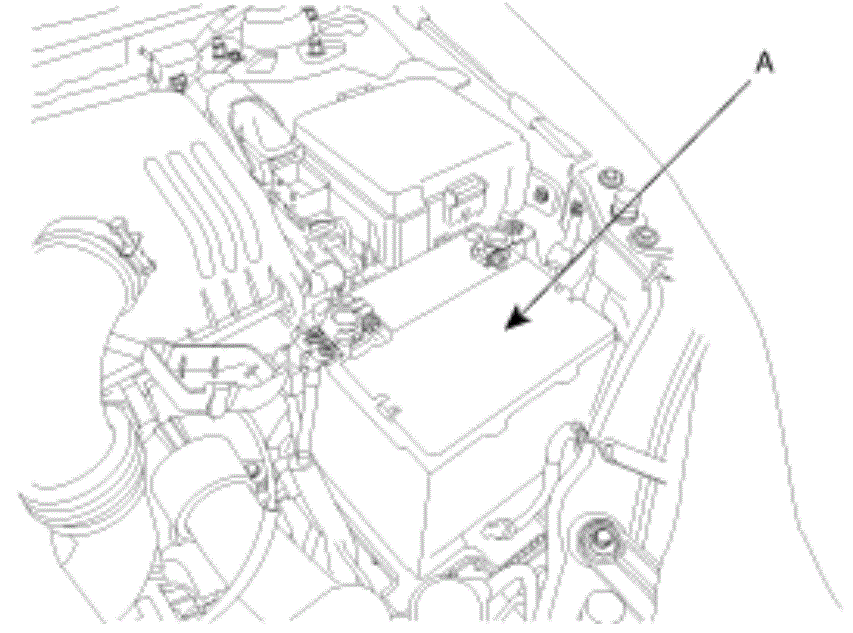

- Disconnect the battery terminals and then remove the battery (A).
- Remove the air conditioning refrigerant.

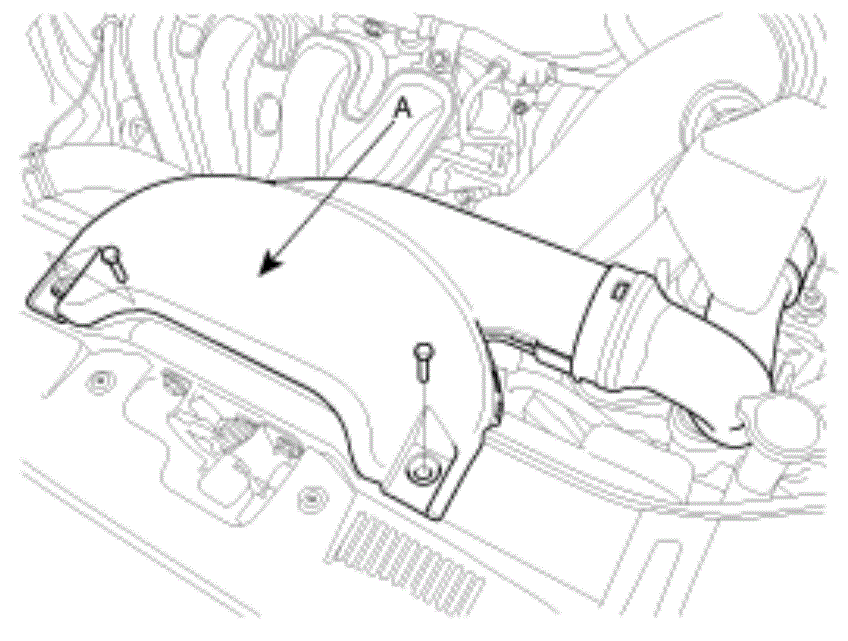

- Remove the air duct (A).

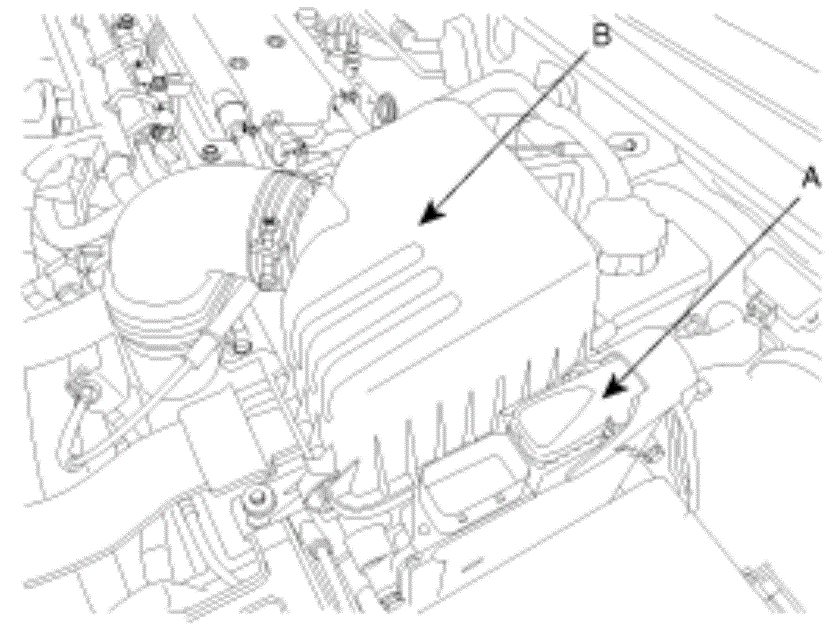

- Disconnect the ECM connector (A) and then remove the air cleaner assembly and ECM.
- Remove the engine room under cover (A).
Tightening torque:
9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)
- Drain the engine coolant.
(Refer to COOLANT )
- Remove the front muffler (A).
Tightening torque:
39.2 ~ 58.8N.m (4.0 ~ 6.0kgf.m, 28.9 ~ 43.4 lb-ft)
(ULEV)
(SULEV)

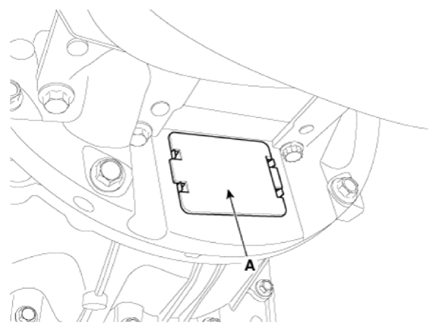

- Remove the dust cover (A).

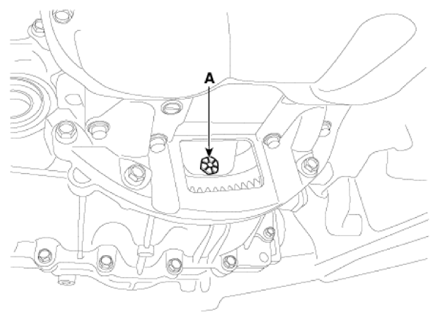

- Remove the torque converter mounting bolts (A) by rotating the crankshaft.
Tightening torque:
45.1 - 52.0 N.m (4.6 - 5.3 kgf.m, 33.3 - 38.3 lb.ft)
- Loosen the transaxle lower mounting bolts (A, B).
Tightening torque:
(A) 42.2 - 48.1 N.m (4.3 - 4.9 kgf.m, 31.1 - 35.4 lb.ft)
(B) 42.2 - 54.0 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb.ft)
- Remove the front bumper assembly.
(Refer to FRONT BUMPER )
- Remove the RH and LH head lamps.
(Refer to HEAD LAMPS )

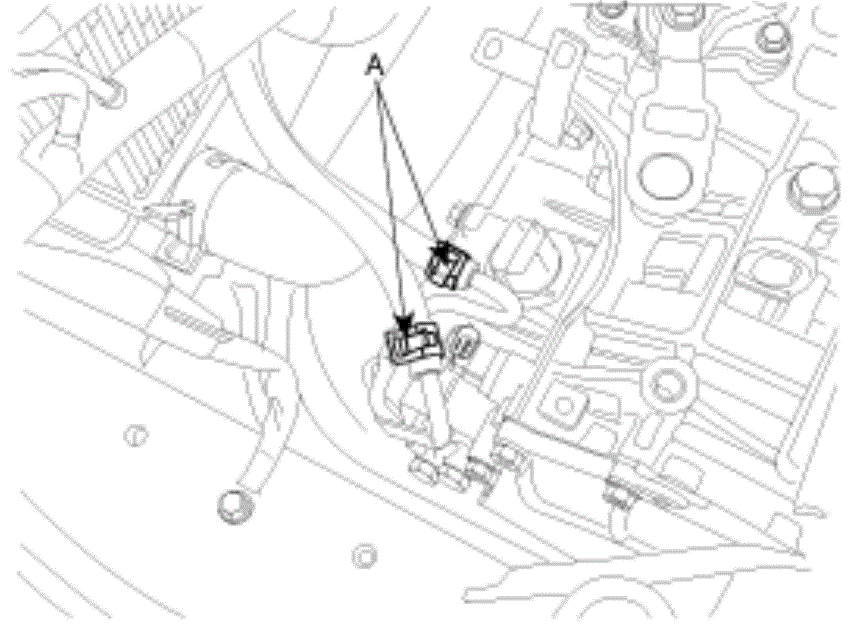

- Disconnect the ATF cooler hoses (A).

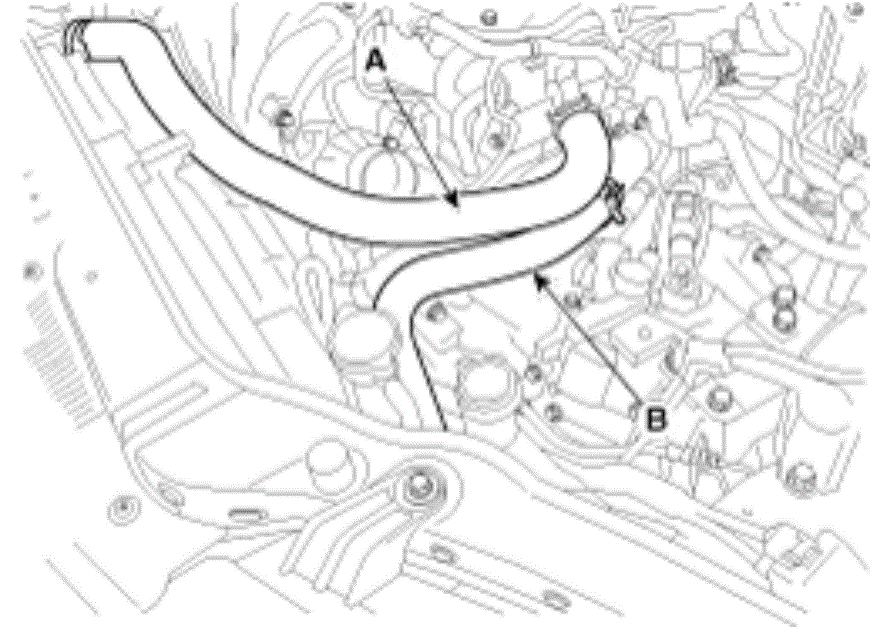

- Disconnect the radiator upper hose (A) and lower hose (B).

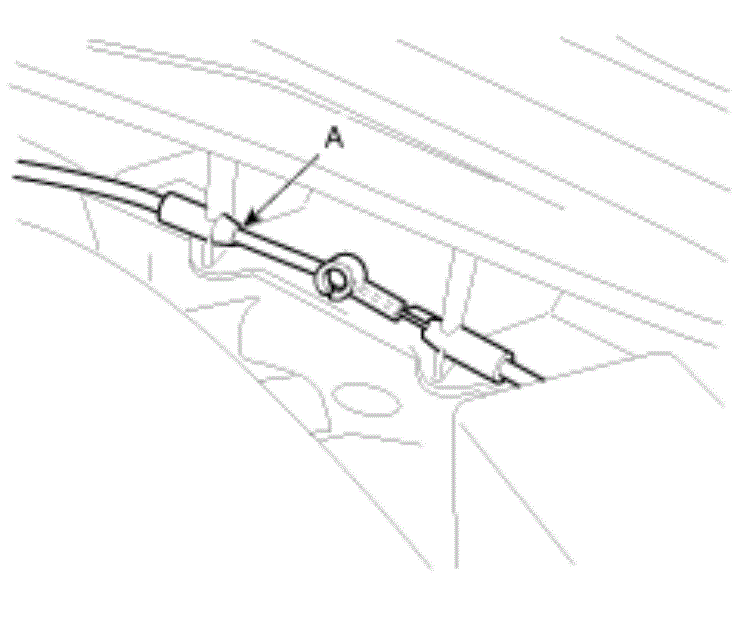

- Disconnect the hood latch cable (A).

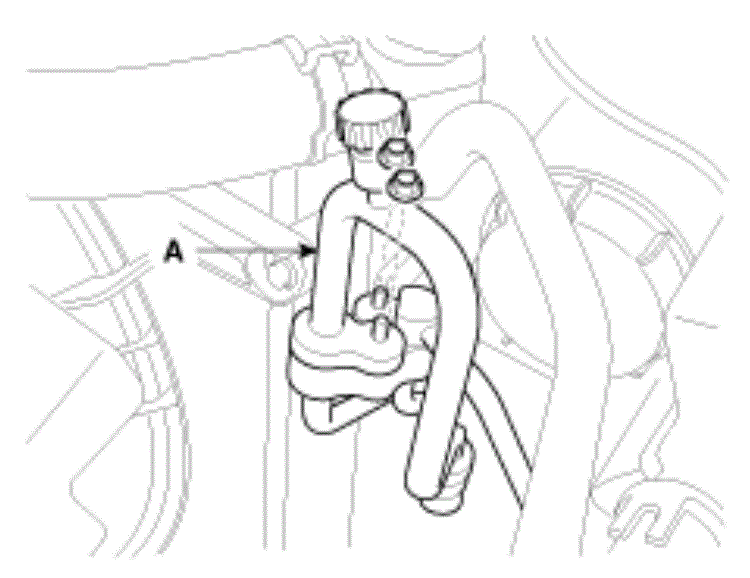

- Disconnect the A/C discharge line and liquid line (A).
- Disconnect the wiring harness connectors and fasteners from the front end module (FEM) assembly.

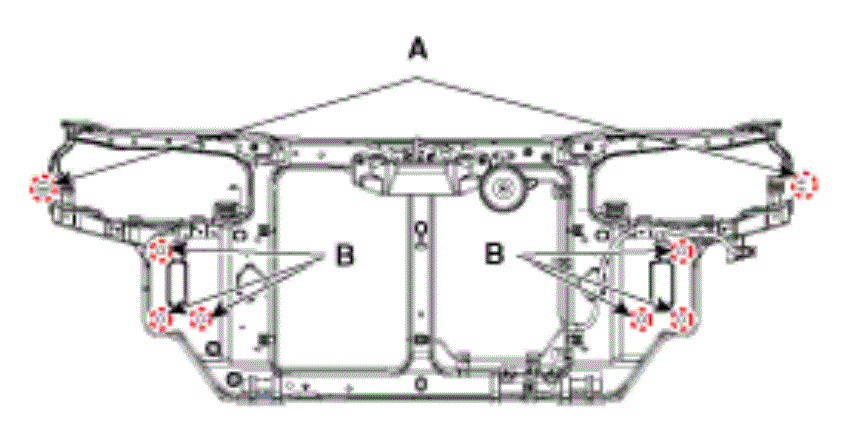

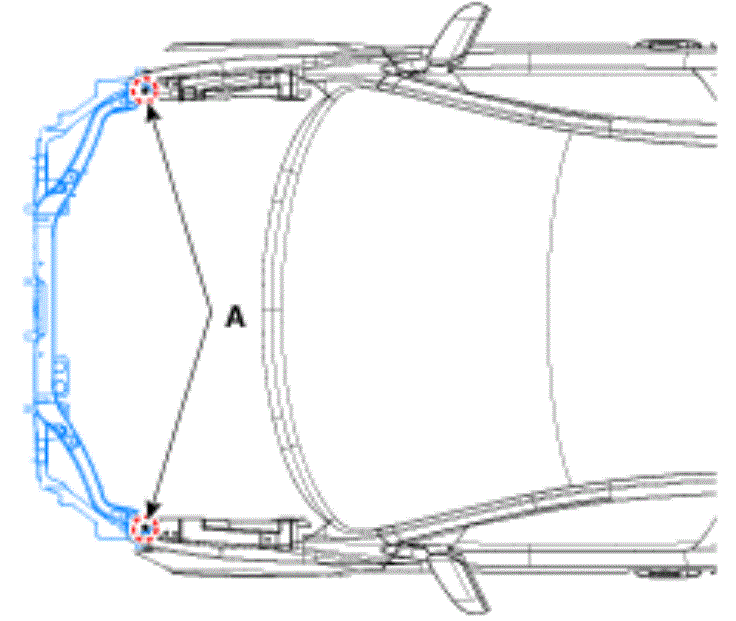

- Remove the RH and LH front end module (FEM) upper mounting bolts (A).
Tightening torque:
21.6 ~ 26.5 N.m (2.2 ~ 2.7 kgf.m, 15.9 ~ 19.5 lb-ft)
- Remove the front end module (FEM) assembly after removing the front end module (FEM) assembly bolts (A) and (B).
Tightening torque:
Bolts (A): 9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)
Bolts (B): 21.6 ~ 26.5 N.m (2.2 ~ 2.7 kgf.m, 15.9 ~ 19.5 lb-ft)

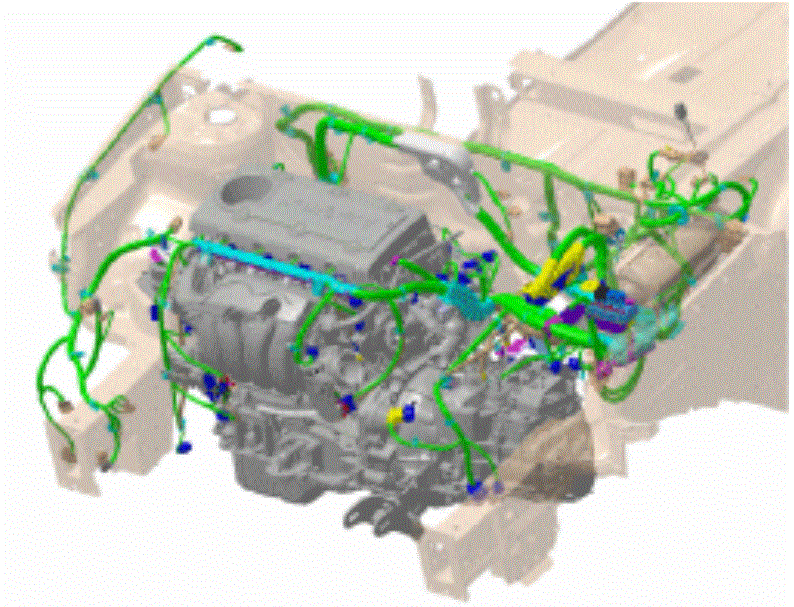

NOTE: Marking is necessary before removing FEM in order to install the FEM in the right place as it was. - Disconnect the control wiring harness connectors and fasteners and remove the wiring harness protectors from the engine and transaxle assembly.

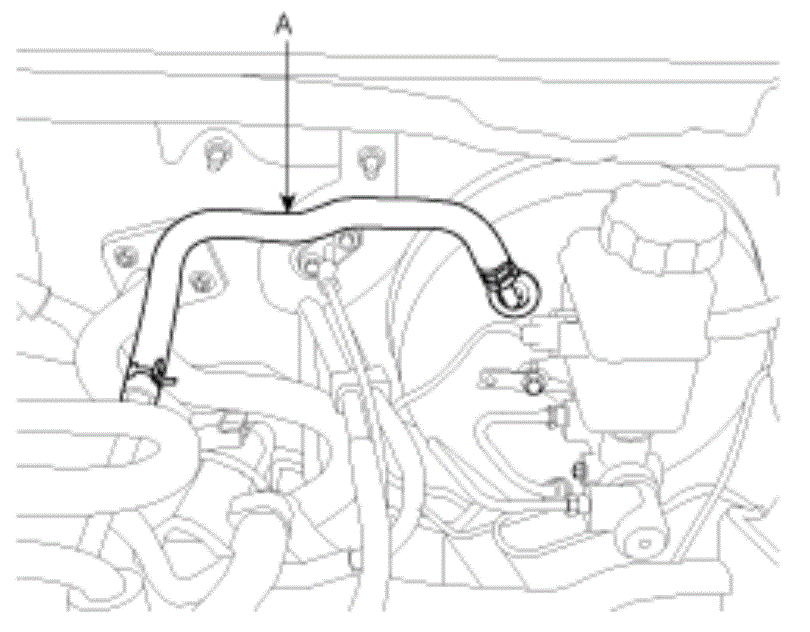

- Disconnect the brake vacuum hose (A).

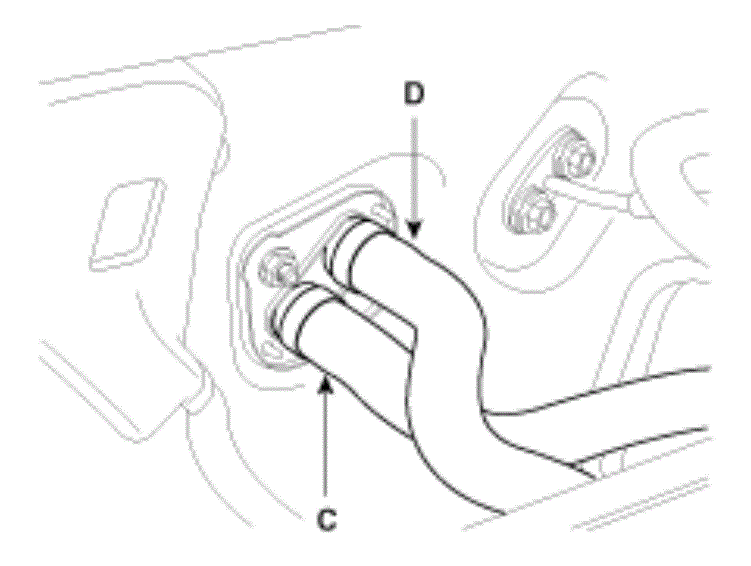

- Disconnect the inlet (C) and outlet (D) heater hoses from the heater unit.

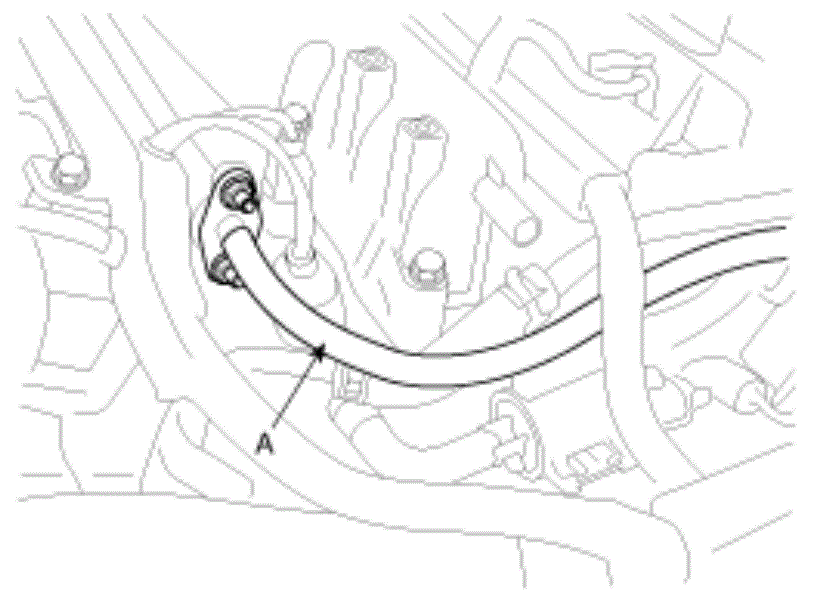

- Disconnect the fuel hose (A).

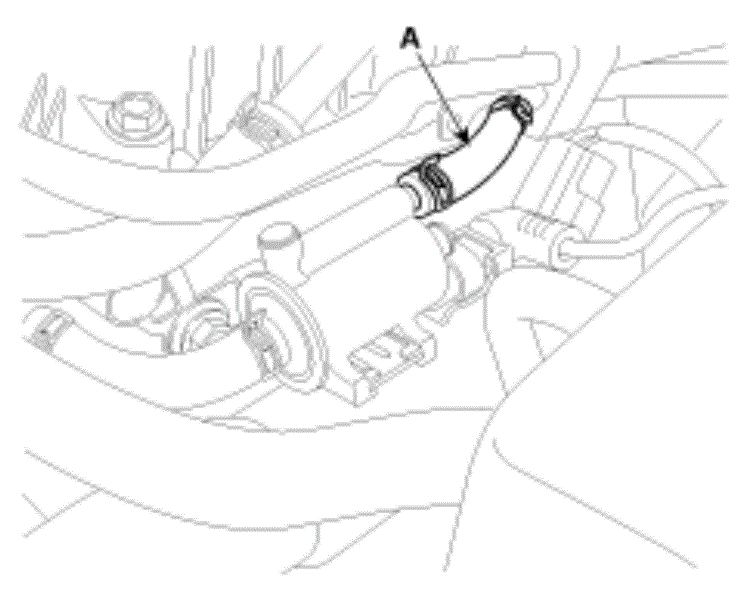

- Disconnect the purge control solenoid valve (PCSV) hose (A).

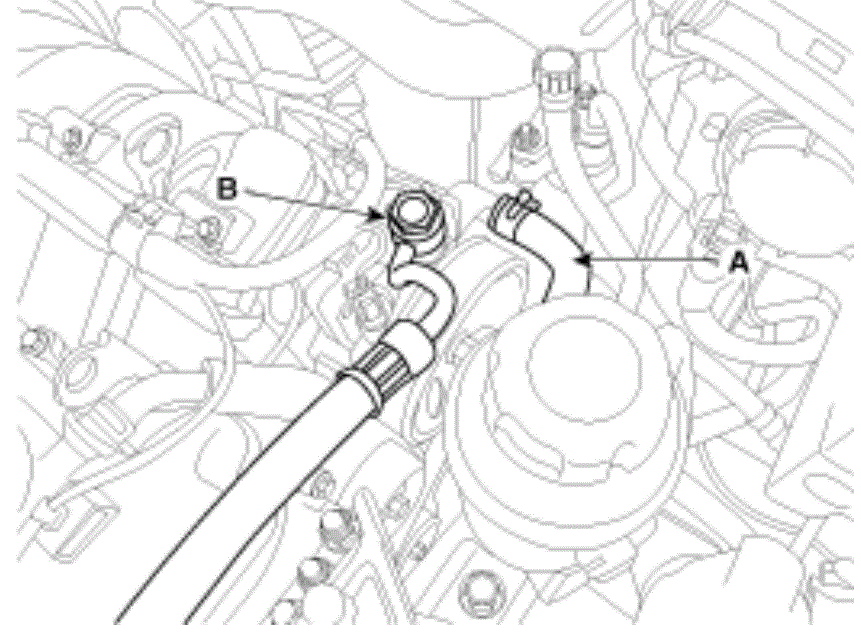

- Disconnect the return hose (A) and pressure hose (B). (HPS only)
- Remove the drive belt after turning the drive belt tensioner couterclockwise.
MDPS
HPS
- Remove the alternator.
(Refer to ALTERNATOR )
- Remove the A/C compressor.
(Refer to COMPRESSOR )

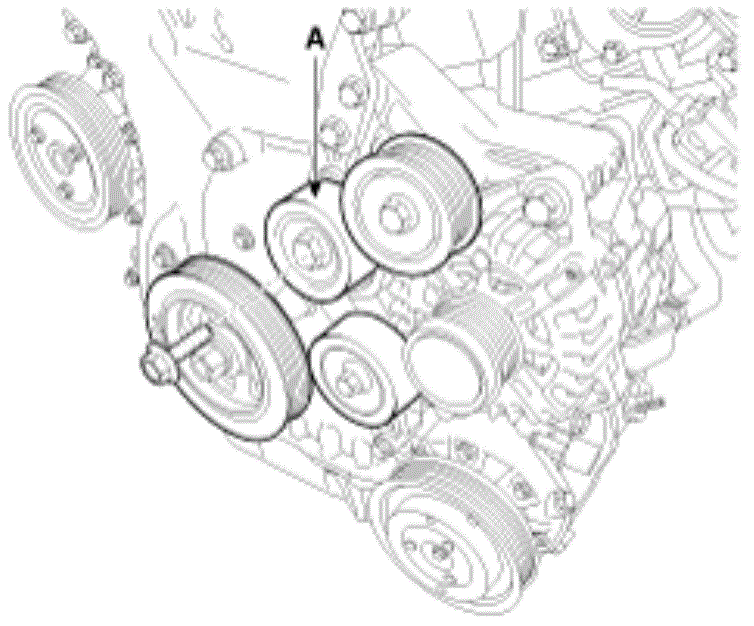

- Remove the drive belt tensioner (A).
Tightening torque
53.9 ~ 63.7 N.m (5.5 ~ 6.5 kgf.m, 39.8 ~ 47.0 lb-ft)

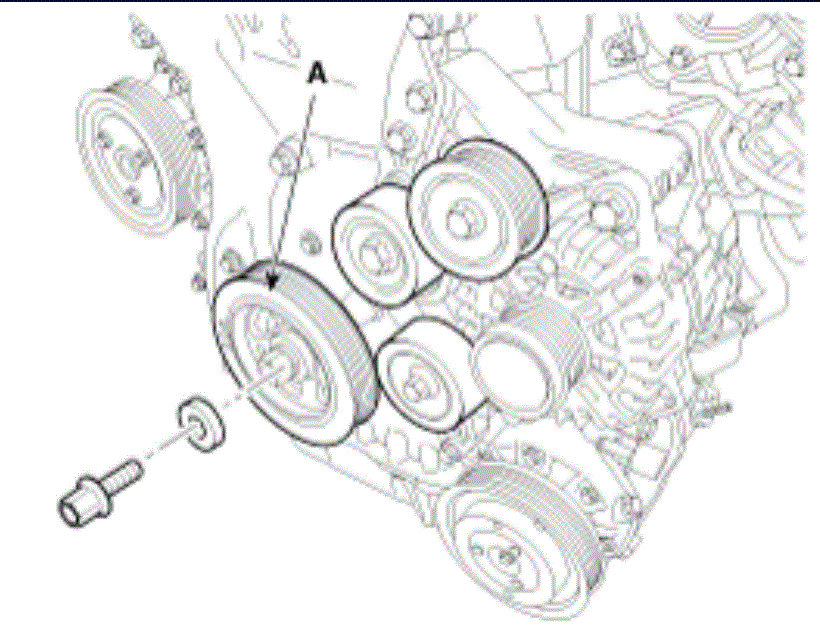

- Remove the crankshaft damper pulley.
Tightening torque
166.6 ~ 176.4 N.m (17.0 ~ 18.0 kgf.m, 122.9 ~ 130.1 lb-ft)

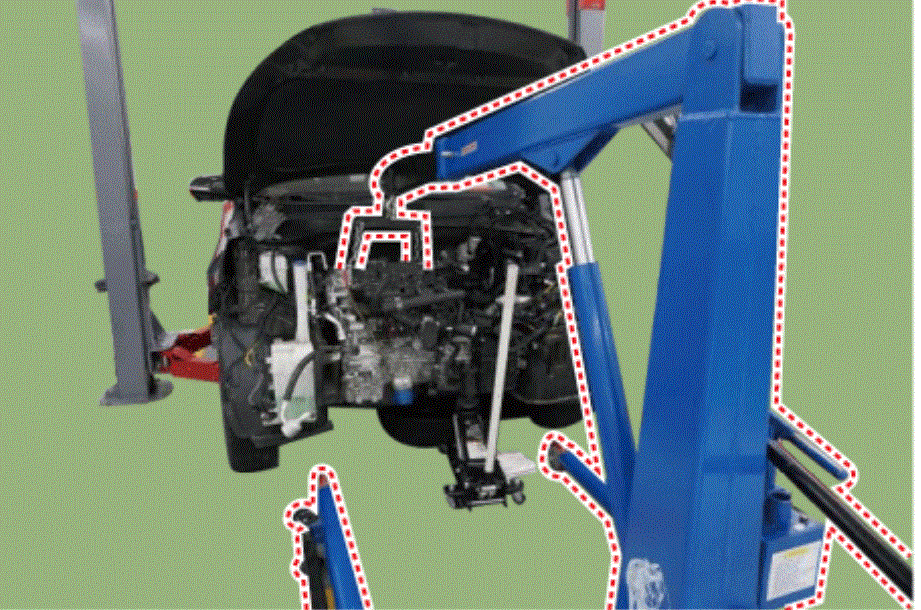

- Securely support the transaxle using a jack, then install the hoist to the engine hanger.
- Disconnect the ground line and then remove the engine mounting bracket (A).
Tightening torque:
63.7 ~ 83.4 N.m (6.5 ~ 8.5 kgf.m, 47.0 ~ 61.5 lb-ft)

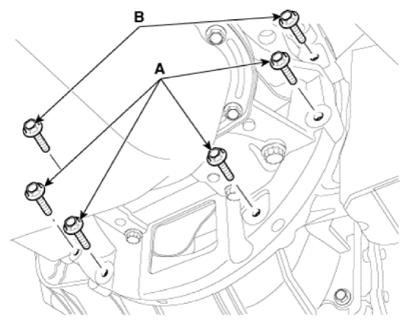

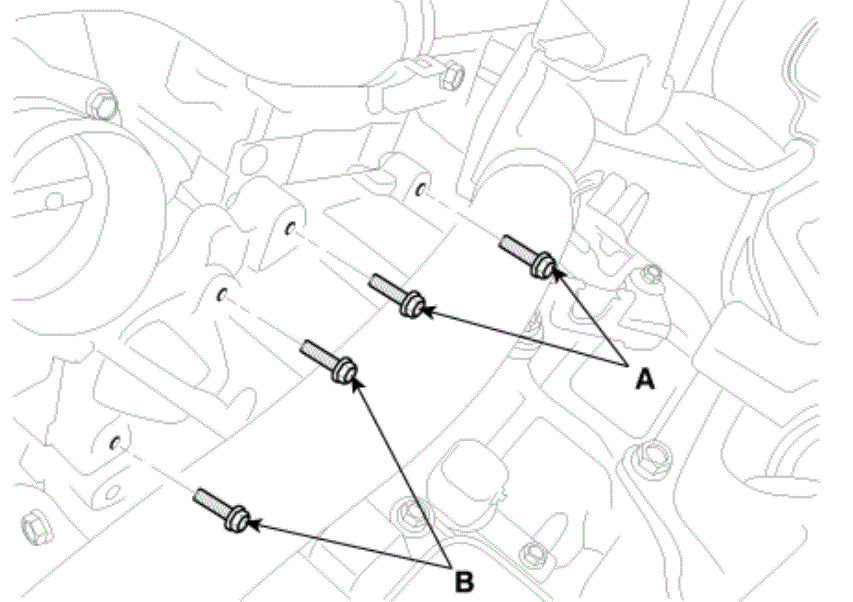

- Remove the automatic transaxle upper mounting bolts (A) and the starter mounting bolts (B).
Tightening torque:
(A), (B): 42.2 - 53.9 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb.ft)

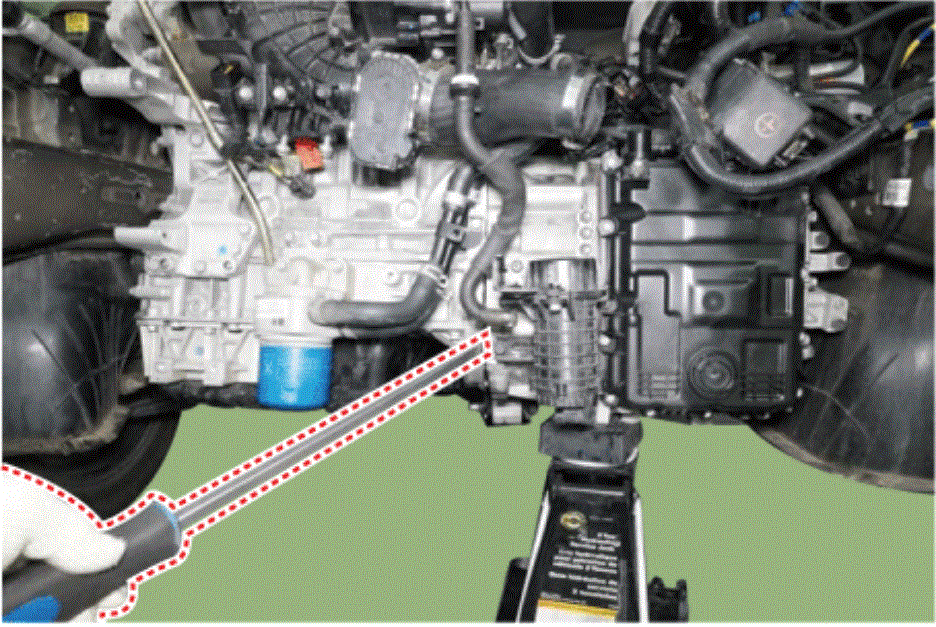

- Separate the engine and transaxle by using a pry bar.

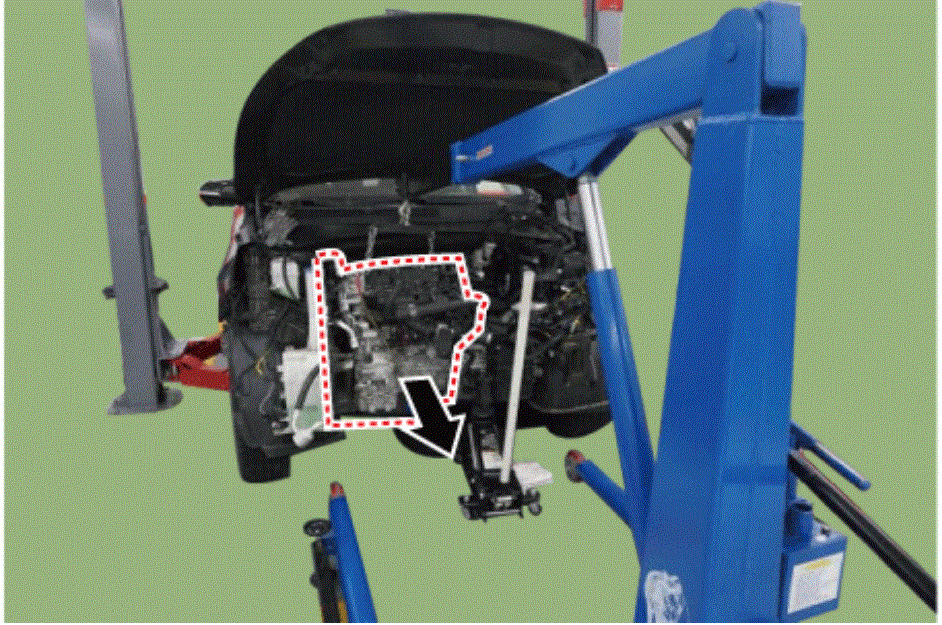

- Remove the engine assembly by pulling it toward the front of the vehicle.NOTE: When pulling the engine, be careful not to touch the surrounding parts. Damage to the engine or parts may occur.
