Signal Circuit Inspection

  1. Ignition "OFF"
  2. Disconnect IAT sensor connector and PCM connector.
  3. Measure the resistance between signal terminal of IATS harness connector and chassis ground.

    Specification :  Infinite

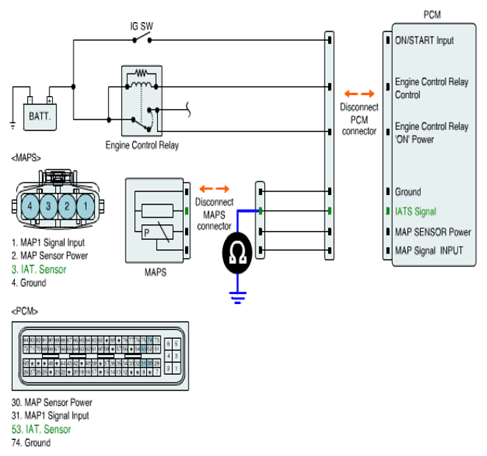

    Fig 1: Measuring Resistance Between Signal Terminal Of IATS Harness Connector & Chassis Ground
    G07371923Courtesy of KIA MOTORS AMERICA, INC.
  4. Is resistance within the specification?

    YES

    • Go to next step as below

    NO
