Standard Flow Of Diagnostic Troubleshooting

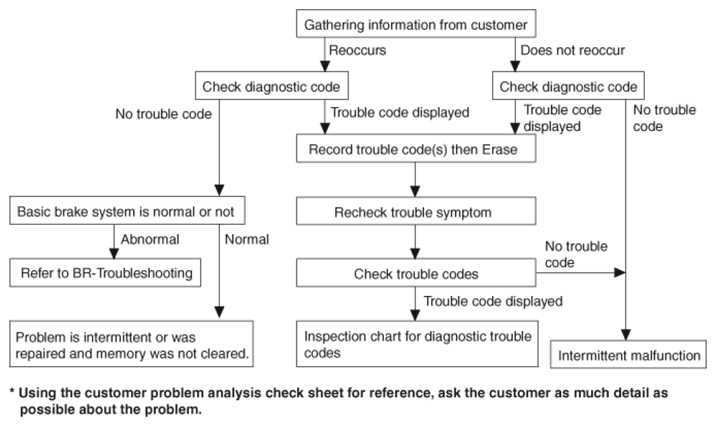

Fig 1: Diagnostic Flow Chart

G07368435

Courtesy of KIA MOTORS AMERICA, INC.
