Timing Cover





Timing Cover

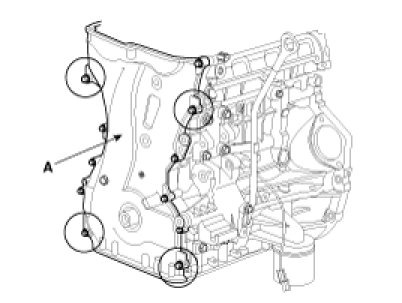

The dowel pins on the cylinder block and holes on the timing chain cover should be used as a reference in order to assemble the timing chain cover to be in exact position.

Tightening torque :
M6 7.84 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)
M8 18.6 - 22.5 N.m (1.9 - 2.3 kgf.m, 13.7 - 16.6 lb-ft)






CAUTION: The firing and/or blow out test should not be performed within 30 minutes after the timing chain cover was assembled.
